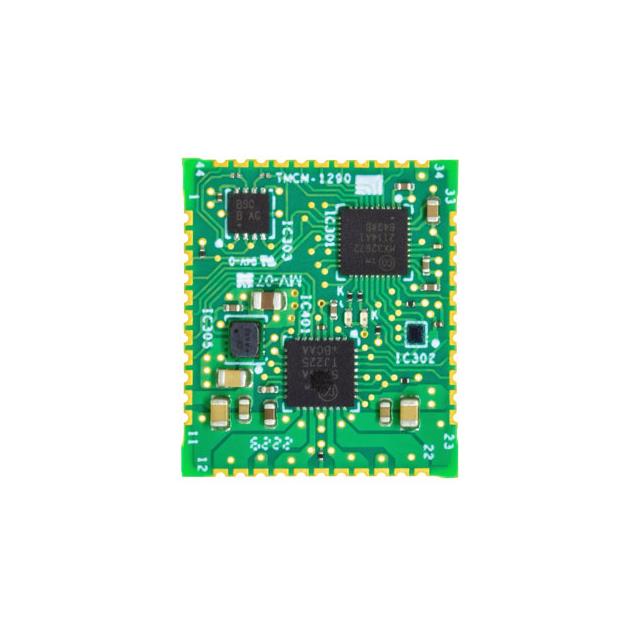

TMCM-1290-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER MODULE WITH INTEG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMCM-1290-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER MODULE WITH INTEG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMCM-1290-TMCL |
|---|---|
| Control / Drive Type | Bipolar, Stepper |
| Current - Output | 2.1 A |
| Interface | SPI, RS-485 |
| Motor Type | Stepper |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Type | Board |
| Voltage - Load [Max] | 36 V |
| Voltage - Load [Min] | 4.5 V |
| Voltage - Supply [Max] | 36 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 55.46 | |
| 10 | $ 43.06 | |||
| 25 | $ 39.89 | |||
| 100 | $ 36.88 | |||
Description
General part information
TMCM-1290 Series
Stepper, Bipolar 4.5 ~ 36VDC Supply 2.1A 4.5 ~ 36V Load
