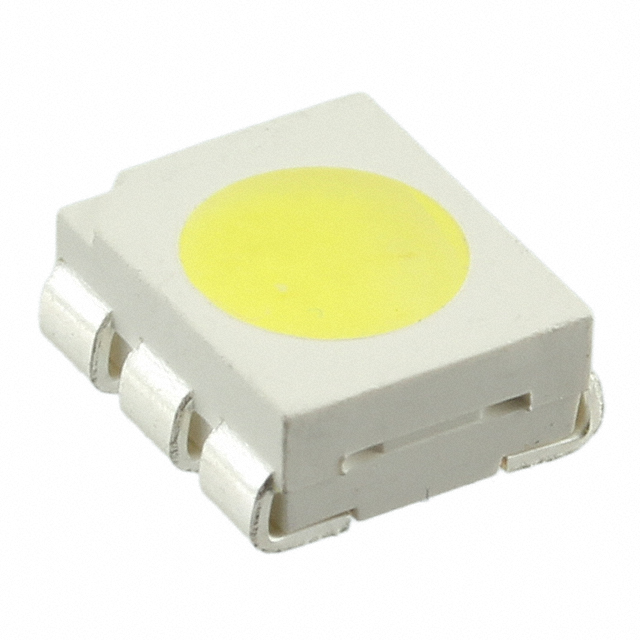

CLP6B-WKW-CC0E0453

Active

Cree LED

LED COOL WHITE DIFF 6PLCC SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLP6B-WKW-CC0E0453

Active

Cree LED

LED COOL WHITE DIFF 6PLCC SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CLP6B-WKW-CC0E0453

Color	Cool, White
Configuration	Standard
Current - Test	50 mA
Height (Max) [Max] [z]	2.6 mm
Lens Color	Yellow
Lens Size [diameter]	4 mm
Lens Transparency	Diffused
Millicandela Rating	13500 mcd
Mounting Type	Surface Mount
Package / Case	6-SMD, J-Lead
Size / Dimension [x]	6 mm
Size / Dimension [y]	5 mm
Supplier Device Package	6-PLCC
Voltage - Forward (Vf) (Typ)	3.8 V
Wavelength - Dominant [custom]	6800 K

CLP6B Series

Part	Color	Configuration	Lens Transparency	Package / Case	Lens Color	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Current - Test	Lens Size [diameter]	Height (Max) [Max] [z]	Mounting Type	Wavelength - Dominant [custom]	Lens Style	Lens Size [y]	Lens Size [x]
Cree LED CLP6B-MKW-CB0E0513	Warm White	Standard	Diffused	6-SMD J-Lead	Yellow	6 mm	5 mm	12550 mcd	6-PLCC	3.8 V	3200 K	50 mA	4 mm	2.6 mm	Surface Mount
Cree LED CLP6B-WKW-CD0F0453	Cool White	Standard	Diffused	6-SMD J-Lead	Yellow	6 mm	5 mm	14600 mcd	6-PLCC	3.8 V		50 mA	4 mm	2.6 mm	Surface Mount	6800 K
Cree LED CLP6B-WKW-CC0E0453	Cool White	Standard	Diffused	6-SMD J-Lead	Yellow	6 mm	5 mm	13500 mcd	6-PLCC	3.8 V		50 mA	4 mm	2.6 mm	Surface Mount	6800 K
Cree LED CLP6B-MKW-CB0F0233	Warm White	Independent		6-SMD J-Lead		6 mm	5 mm	14750 mcd	6-PLCC	3.8 V		50 mA		2.6 mm	Surface Mount		Rectangle with Flat Top	5 mm	6 mm
Cree LED CLP6B-MKW-CC0F0513	Warm White	Independent	Diffused	6-SMD J-Lead	Yellow	6 mm	5 mm	15700 mcd	6-PLCC	3.8 V		50 mA	4 mm	2.6 mm	Surface Mount
Cree LED CLP6B-WKW-CB0E0153	Cool White	Standard	Diffused	6-SMD J-Lead	Yellow	6 mm	5 mm	12550 mcd	6-PLCC	3.8 V		50 mA	4 mm	2.6 mm	Surface Mount	6800 K
Cree LED CLP6B-MKW-CB0F0133	Warm White	Independent		6-SMD J-Lead		6 mm	5 mm	14750 mcd	6-PLCC	3.8 V		50 mA		2.6 mm	Surface Mount		Rectangle with Flat Top	5 mm	6 mm
Cree LED CLP6B-MKW-CC0F0233	Warm White	Independent	Diffused	6-SMD J-Lead	Yellow	6 mm	5 mm	15700 mcd	6-PLCC	3.8 V		50 mA	4 mm	2.6 mm	Surface Mount
Cree LED CLP6B-MKW-CB0F0513	Warm White	Independent		6-SMD J-Lead		6 mm	5 mm	14750 mcd	6-PLCC	3.8 V		50 mA		2.6 mm	Surface Mount		Rectangle with Flat Top	5 mm	6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.70
		10	$ 0.65
		100	$ 0.60
	Digi-Reel®	1	$ 0.70
		10	$ 0.65
		100	$ 0.60
	Tape & Reel (TR)	900	$ 0.60
		1800	$ 0.54

Description

General part information

CLP6B Series

White, Cool 6800K LED Indication - Discrete 3.8V 6-SMD, J-Lead
