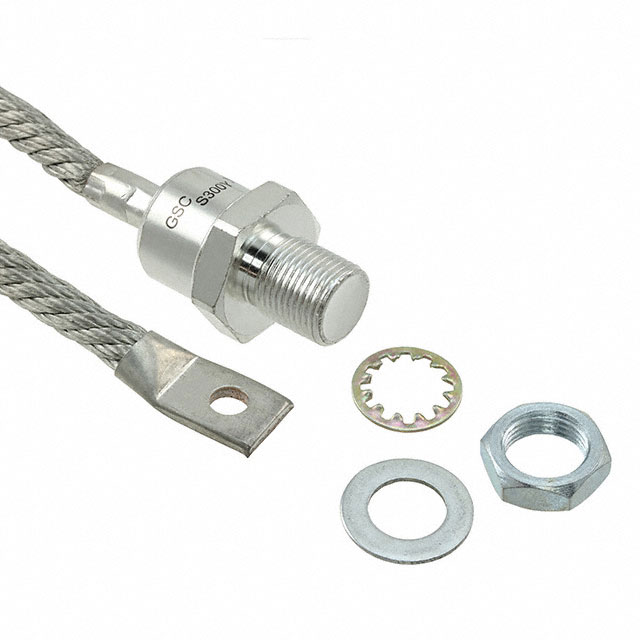

S300Y

Active

GeneSiC Semiconductor

DIODE GEN PURP 1.6KV 300A DO9

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S300Y

Active

GeneSiC Semiconductor

DIODE GEN PURP 1.6KV 300A DO9

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S300Y

Current - Average Rectified (Io)	300 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	180 °C
Operating Temperature - Junction [Min]	-60 °C
Package / Case	DO-205AB, DO-9, Stud
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-9
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.2 V

S300 Series

Part	Package / Case	Speed	Speed	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Mounting Type	Supplier Device Package
GeneSiC Semiconductor S300DR	DO-205AB DO-9 Stud	Standard Recovery >500ns	200 mA	-60 °C	200 °C	10 µA	1.2 V	Reverse Polarity Standard	200 V	300 A	Chassis Stud Mount
GeneSiC Semiconductor S300Z	DO-205AB DO-9 Stud	Standard Recovery >500ns	200 mA	-60 °C	180 °C	10 µA	1.2 V	Standard	2000 V	300 A	Chassis Stud Mount
GeneSiC Semiconductor S300E	DO-205AB DO-9 Stud	Standard Recovery >500ns	200 mA	-60 °C	200 °C	10 µA	1.2 V	Standard	300 V	300 A	Chassis Stud Mount
GeneSiC Semiconductor S300D	DO-205AB DO-9 Stud	Standard Recovery >500ns	200 mA	-60 °C	200 °C	10 µA	1.2 V	Standard	200 V	300 A	Chassis Stud Mount
GeneSiC Semiconductor S300G	DO-205AB DO-9 Stud	Standard Recovery >500ns	200 mA	-60 °C	200 °C	10 µA	1.2 V	Standard	400 V	300 A	Chassis Stud Mount
GeneSiC Semiconductor S300Y	DO-205AB DO-9 Stud	Standard Recovery >500ns	200 mA	-60 °C	180 °C	10 µA	1.2 V	Standard		300 A	Chassis Stud Mount	DO-9
GeneSiC Semiconductor S300J	DO-205AB DO-9 Stud	Standard Recovery >500ns	200 mA	-60 °C	200 °C	10 µA	1.2 V	Standard	600 V	300 A	Chassis Stud Mount
GeneSiC Semiconductor S300JR	DO-205AB DO-9 Stud	Standard Recovery >500ns	200 mA	-60 °C	200 °C	10 µA	1.2 V	Reverse Polarity Standard	600 V	300 A	Chassis Stud Mount
GeneSiC Semiconductor S300ER	DO-205AB DO-9 Stud	Standard Recovery >500ns	200 mA	-60 °C	200 °C	10 µA	1.2 V	Reverse Polarity Standard	300 V	300 A	Chassis Stud Mount
GeneSiC Semiconductor S300GR	DO-205AB DO-9 Stud	Standard Recovery >500ns	200 mA	-60 °C	200 °C	10 µA	1.2 V	Reverse Polarity Standard	400 V	300 A	Chassis Stud Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 65.57
		10	$ 58.38
		25	$ 55.75
		100	$ 51.99

Description

General part information

S300 Series

Diode 1600 V 300A Chassis, Stud Mount DO-9
