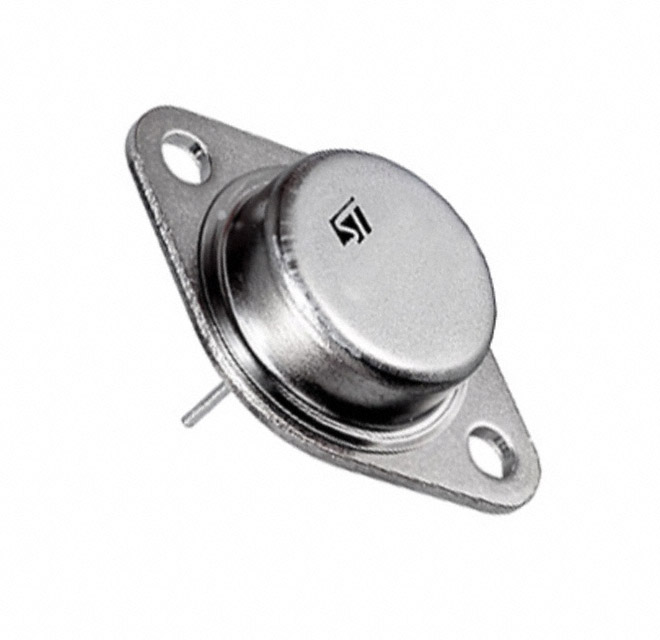

2N3772

Obsolete

STMicroelectronics

TRANS NPN 60V 20A TO3

Search across all available documentation for this part.

Obsolete

STMicroelectronics

TRANS NPN 60V 20A TO3

Technical Specifications

Parameters and characteristics for this part

Specification	2N3772

Current - Collector (Ic) (Max)	20 A
Current - Collector Cutoff (Max) [Max]	10 mA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	15
Frequency - Transition	200 kHz
Mounting Type	Chassis Mount
Package / Case	TO-3, TO-204AA
Power - Max [Max]	150 W
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	4 V
Voltage - Collector Emitter Breakdown (Max)	60 V

Part	Mounting Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector (Ic) (Max)	Transistor Type	Current - Collector Cutoff (Max) [Max]	Frequency - Transition	Package / Case	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max)	Vce Saturation (Max) @ Ib, Ic	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]
STMicroelectronics 2N3772	Chassis Mount	15	20 A	NPN	10 mA	200 kHz	TO-204AA TO-3	150 W	60 V	4 V
STMicroelectronics 2N3771	Chassis Mount	15		NPN	10 mA	200 kHz	TO-204AA TO-3	150 W		4 V	30 A	40 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor NPN 60 V 20 A 200kHz 150 W Chassis Mount TO-3
