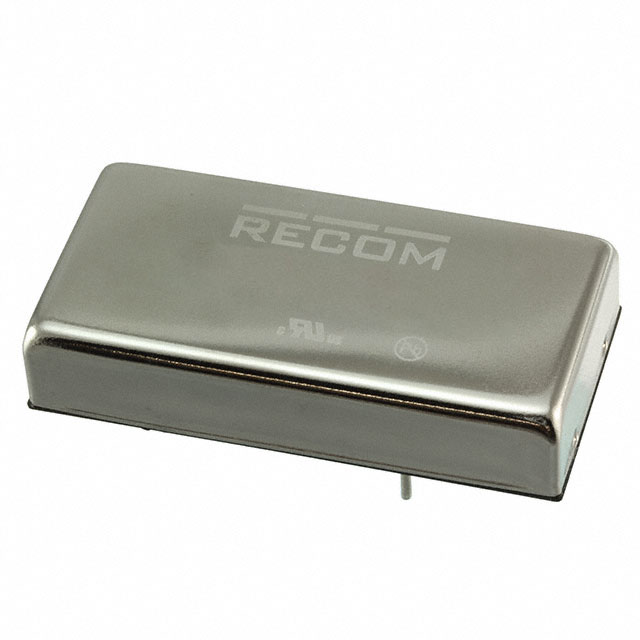

REC20-483.4SZ

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 20W 18-75VIN 3.4VOUT 5000MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

REC20-483.4SZ

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 20W 18-75VIN 3.4VOUT 5000MA

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	REC20-483.4SZ

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	5 A
Efficiency	88 %
Features	SCP, UVLO, Remote On/Off, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	20 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	3.4 V

REC20-485.1 Series

Isolated DC/DC Converters - Through Hole 20W 9-36Vin 3.4Vout 5000mA

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Voltage - Output 1	Applications	Features	Number of Outputs	Mounting Type	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Power (Watts)	Control Features	Voltage - Input (Min) [Min]	Package / Case	Voltage - Isolation	Current - Output (Max) [Max]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
RECOM Power REC20-483.4SZ	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	88 %	3.4 V	ITE (Commercial)	OVP Remote On/Off SCP UVLO	1	Through Hole	75 V	100 °C	-40 °C	Isolated Module	20 W	Active High Enable	18 V	6-DIP Module	1.6 kV	5 A
RECOM Power REC20-2415SZ	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	89 %	15 V	ITE (Commercial)	OVP Remote On/Off SCP UVLO	1	Through Hole	36 V	100 °C	-40 °C	Isolated Module	20 W	Active High Enable	9 V	6-DIP Module	1.6 kV	1.33 A
RECOM Power REC20-485.1SZ	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	90 %	5.1 V	ITE (Commercial)	OVP Remote On/Off SCP UVLO	1	Through Hole	75 V	100 °C	-40 °C	Isolated Module	20 W	Active High Enable	18 V	6-DIP Module	1.6 kV	4 A
RECOM Power REC20-4815SZ	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	90.5 %	15 V	ITE (Commercial)	OVP Remote On/Off SCP UVLO	1	Through Hole	75 V	100 °C	-40 °C	Isolated Module	20 W	Active High Enable	18 V	6-DIP Module	1.6 kV	1.333 A
RECOM Power REC20-4815DZ	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	91 %	15 V	ITE (Commercial)	OVP Remote On/Off SCP UVLO	2	Through Hole	75 V	100 °C	-40 °C	Isolated Module	20 W	Active High Enable	18 V	6-DIP Module	1.6 kV		-15 V	667 mA	667 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	18	$ 63.27
Sager	N/A	1	$ 67.28
		5	$ 63.07
		10	$ 59.36
		25	$ 55.29
		50	$ 53.11
		100	$ 51.75
		250	$ 49.22

Description

General part information

REC20-485.1 Series

Isolated DC/DC Converters - Through Hole 20W 9-36Vin 3.4Vout 5000mA
