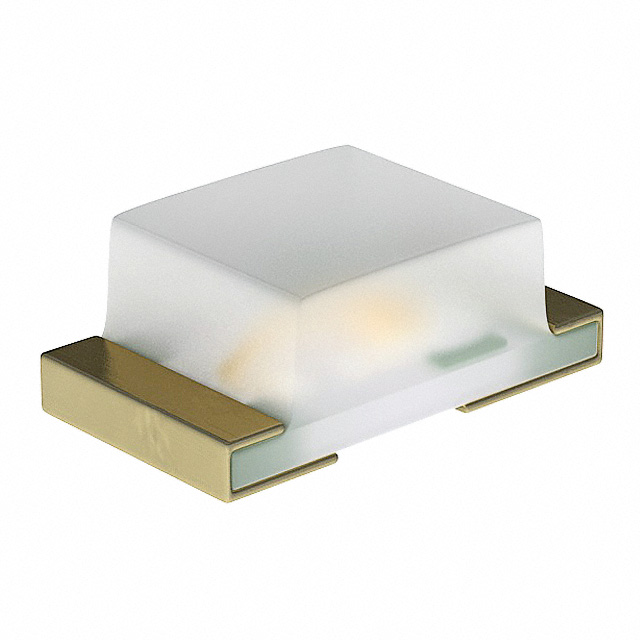

SIR19-315/TR8

Active

Everlight Electronics Co Ltd

EMITTER IR 870NM 70MA 0603

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

EMITTER IR 870NM 70MA 0603

Technical Specifications

Parameters and characteristics for this part

Specification	SIR19-315/TR8

Current - DC Forward (If) (Max)	70 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 C
Operating Temperature [Min]	-25 °C
Orientation	Top View
Package / Case	0603 (1608 Metric)
Radiant Intensity (Ie) Min @ If [Min]	1 mW/sr
Type	Infrared (IR)
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ)	1.35 V
Wavelength	870 nm

Part	Wavelength	Radiant Intensity (Ie) Min @ If [Min]	Viewing Angle	Type	Package / Case	Current - DC Forward (If) (Max)	Voltage - Forward (Vf) (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Mounting Type
Everlight Electronics Co Ltd SIR19-315/TR8	870 nm	1 mW/sr	140 °	Infrared (IR)	0603 (1608 Metric)	70 mA	1.35 V	85 C	-25 °C	Top View	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 870nm 1.35V 70mA 1mW/sr @ 20mA 140° 0603 (1608 Metric)

Technical documentation and resources

No documents available
