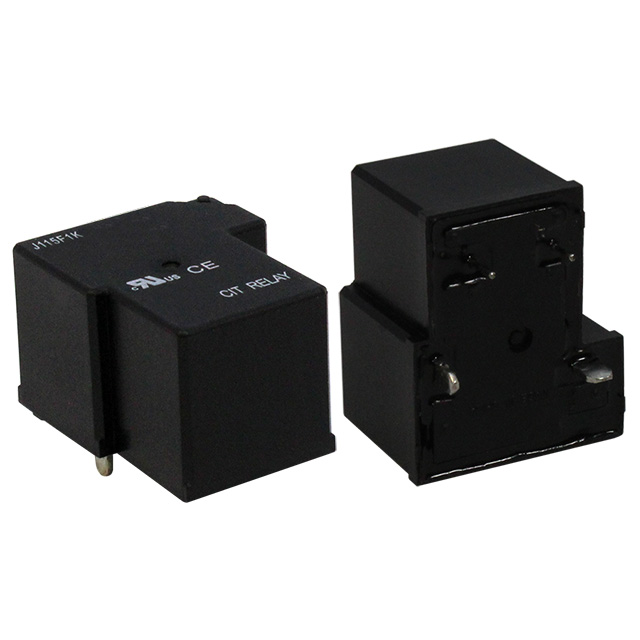

J115F1K1AH12VDCSK2.25

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPST 50A 12V

Search across all available documentation for this part.

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPST 50A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Rating (Current)	Coil Type	Contact Form	Release Time	Relay Type	Seal Rating	Load - Max Switching	Termination Style	Coil Current	Must Operate Voltage	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage [Max]	Operate Time	Coil Voltage	Coil Resistance	Contact Material	Mounting Type
CIT Relay and Switch J115F1K1AH24VDCS2.25	50 A	Non Latching	SPST-NO (1 Form A)	10 ms	General Purpose	Sealed - Fully	13850 VA	PC Pin	93.8 mA	18 VDC	2.4 VDC	125 °C	-40 °C	277 VAC	15 ms	24 VDC	256 Ohms	Silver Tin Oxide (AgSnO)	Through Hole
CIT Relay and Switch J115F1K1AH12VDCSK2.25	50 A	Non Latching	SPST-NO (1 Form A)	10 ms	General Purpose	Sealed - Fully	13850 VA	PC Pin	187.5 mA	9 VDC	1.2 VDC	125 °C	-40 °C	277 VAC	15 ms	12 VDC	64 Ohms	Silver Tin Oxide (AgSnO)	Through Hole
CIT Relay and Switch J115F1K1AH12VDCS2.25	50 A	Non Latching	SPST-NO (1 Form A)	10 ms	General Purpose	Sealed - Fully	13850 VA	PC Pin	187.5 mA	9 VDC	1.2 VDC	125 °C	-40 °C	277 VAC	15 ms	12 VDC	64 Ohms	Silver Tin Oxide (AgSnO)	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
