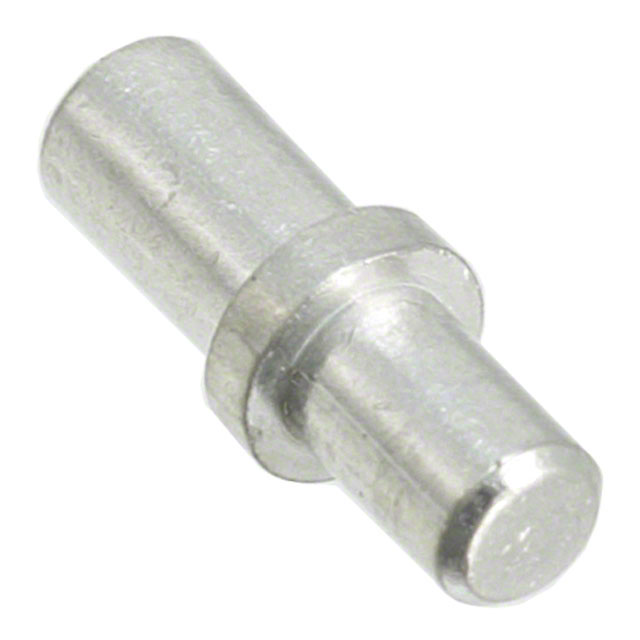

H3163-01 - H3163-01

H3163-01

Active
Harwin Inc.

PCB SOCKET, 1POS, GOLD, TH ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

Documents1.0mm P.C. Sockets Spec SheetH3153-01+2
H3163-01 - H3163-01

H3163-01

Active
Harwin Inc.

PCB SOCKET, 1POS, GOLD, TH ROHS COMPLIANT: YES

Deep-Dive with AI

Documents1.0mm P.C. Sockets Spec SheetH3153-01+2

Technical Specifications

Parameters and characteristics for this part

SpecificationH3163-01
Accepts Pin Diameter [Max]1.05 mm
Accepts Pin Diameter [Max]0.041 "
Accepts Pin Diameter [Min]0.035 "
Accepts Pin Diameter [Min]0.89 mm
Contact FinishGold
Contact Finish Thickness5.9 µin
Contact Finish Thickness0.15 µm
Contact MaterialBeryllium Copper
Flange Diameter3.18 mm
Flange Diameter [diameter]0.125 in
Insertion Force [Max]9 N
Insertion Force [Min]3 N
Length - Overall [x]0.312 in
Length - Overall [x]7.92 mm
Mounting Hole Diameter [Max]2.29 mm
Mounting Hole Diameter [Max]0.09 in
Mounting Hole Diameter [Min]0.086 in
Mounting Hole Diameter [Min]2.18 mm
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Socket Depth0.192 in
Socket Depth4.88 mm
Tail TypeNo Tail
TerminationPress-Fit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.03
10$ 0.87
25$ 0.84
50$ 0.82
100$ 0.78
250$ 0.71
500$ 0.64
1000$ 0.57
2500$ 0.52
NewarkEach 1$ 0.94
10$ 0.76
100$ 0.65
250$ 0.59
500$ 0.54
1000$ 0.51
2500$ 0.47

Description

General part information

H3163 Series

Pin Receptacle Connector 0.035" ~ 0.041" (0.89mm ~ 1.05mm) No Tail Press-Fit
