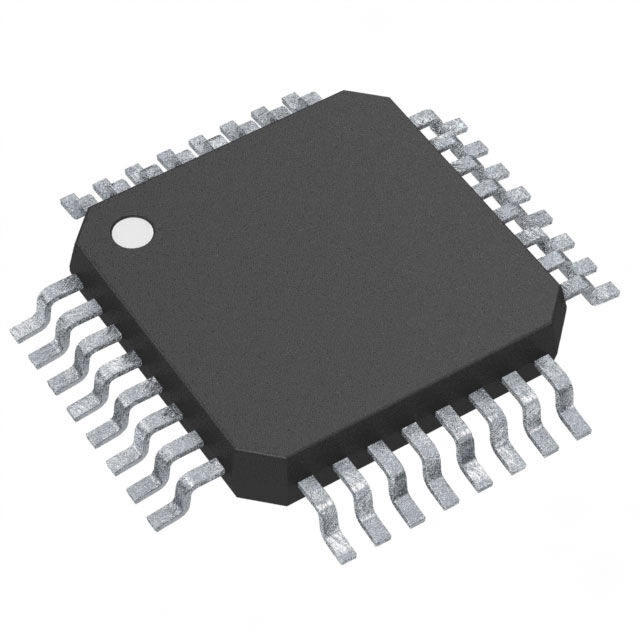

S9KEAZN64AMLC

Active

Freescale Semiconductor - NXP

IC MCU 32BIT 64KB FLASH 32LQFP

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

IC MCU 32BIT 64KB FLASH 32LQFP

Technical Specifications

Parameters and characteristics for this part

Part	Connectivity	RAM Size	Number of I/O	Package / Case	Data Converters [custom]	Data Converters [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Core Size	Oscillator Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	EEPROM Size	Program Memory Size	Core Processor	Peripherals	Program Memory Type	Speed	Supplier Device Package	Mounting Type
Freescale Semiconductor - NXP S9KEAZN64AVLC	I2C LINbus SPI UART/USART	4K x 8	28	32-LQFP	16	12 b	105 °C	-40 °C	32-Bit Single-Core	Internal	2.7 V	5.5 V	256 x 8	64 KB	ARM® Cortex®-M0+	LVD POR PWM WDT	FLASH	40 MHz	32-TQFP (7x7)	Surface Mount
Freescale Semiconductor - NXP S9KEAZN64AMLC	I2C LINbus SPI UART/USART	4K x 8	28	32-LQFP	16	12 b	125 °C	-40 °C	32-Bit Single-Core	Internal	2.7 V	5.5 V	256 x 8	64 KB	ARM® Cortex®-M0+	LVD POR PWM WDT	FLASH	40 MHz	32-TQFP (7x7)	Surface Mount
Freescale Semiconductor - NXP S9KEAZN64AMLHR	I2C LINbus SPI UART/USART	4K x 8	57	64-LQFP	16	12 b	125 °C	-40 °C	32-Bit Single-Core	Internal	2.7 V	5.5 V	256 x 8	64 KB	ARM® Cortex®-M0+	LVD POR PWM WDT	FLASH	40 MHz	64-LQFP (10x10)	Surface Mount
Freescale Semiconductor - NXP S9KEAZN64AVLCR	I2C LINbus SPI UART/USART	4K x 8	28	32-LQFP	16	12 b	105 °C	-40 °C	32-Bit Single-Core	Internal	2.7 V	5.5 V	256 x 8	64 KB	ARM® Cortex®-M0+	LVD POR PWM WDT	FLASH	40 MHz	32-LQFP (7x7)	Surface Mount
Freescale Semiconductor - NXP S9KEAZN64ACLC	I2C LINbus SPI UART/USART	4K x 8	28	32-LQFP	16	12 b	85 °C	-40 °C	32-Bit Single-Core	Internal	2.7 V	5.5 V	256 x 8	64 KB	ARM® Cortex®-M0+	LVD POR PWM WDT	FLASH	40 MHz	32-LQFP (7x7)	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ARM® Cortex®-M0+ Kinetis KEA Microcontroller IC 32-Bit Single-Core 40MHz 64KB (64K x 8) FLASH 32-TQFP (7x7)
