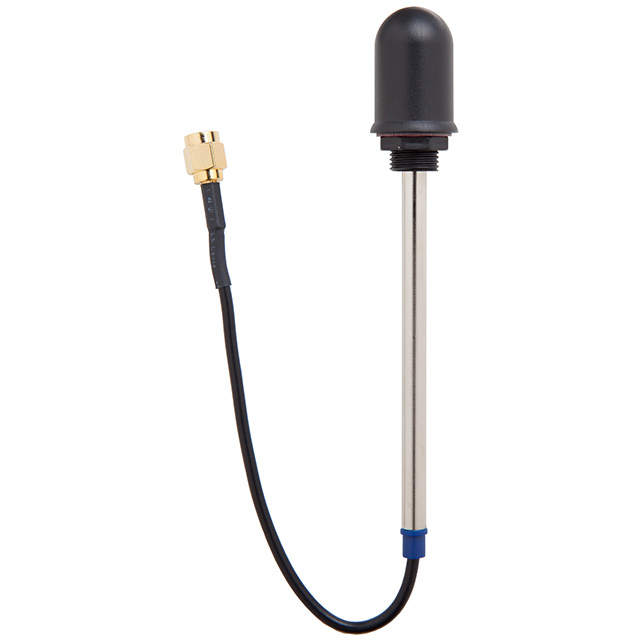

ANT-418-WRT-RPS

Active

TE Connectivity Linx

RF ANT 418MHZ DOME RP-SMA PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ANT-418-WRT-RPS

Active

TE Connectivity Linx

RF ANT 418MHZ DOME RP-SMA PNL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ANT-418-WRT-RPS

Antenna Type	Dome
Applications	ISM, Alarms, Security Systems, Remote Control
Features	Cable
Features	216 mm
Frequency (Center/Band)	400 MHz, 410 MHz
Frequency Group [Max]	1 GHz
Frequency Group [Min]	300 MHz
Frequency Range [Max]	426 MHz
Frequency Range [Min]	409 MHz
Gain	-1.3 dBi
Height (Max)	27 mm
Height (Max) [Max]	1.063 in
Number of Bands	1
RF Family/Standard	General ISM
Termination	RP-SMA Male
VSWR	1.9

ANT-418 Series

Part	Number of Bands	Height (Max) [Max]	Height (Max) [Max]	Gain	Frequency Group [Max]	Frequency Group [Min]	RF Family/Standard	Mounting Type	Antenna Type	Frequency (Center/Band)	Applications	VSWR	Termination	Frequency Range [Max]	Frequency Range [Min]	Height (Max)	Features	Height (Max)	Features
TE Connectivity Linx ANT-418-CW-QW-SMA	1	178 mm	7.008 in	2.9 dBi	1 GHz	300 MHz	General ISM	Connector Mount	Whip Straight	380 MHz 410 MHz 450 MHz	Alarms ISM Remote Control Security Systems	1.9
TE Connectivity Linx ANT-418-USP	1	2.62 mm	0.103 in	-8.9 dBi	1 GHz	300 MHz	General ISM	Surface Mount	Chip	418 MHz	Alarms ISM Remote Control Security Systems	1.9	Solder	422 MHz	414 MHz
TE Connectivity Linx ANT-418-CW-RH	1		2.008 in	-6.7 dBi	1 GHz	300 MHz	General ISM	Connector Mount	Whip Straight	418 MHz	Alarms ISM Remote Control Security Systems	1.9	RP-SMA Male	423 MHz	413 MHz	51 mm
TE Connectivity Linx ANT-418-CW-QW	1	178 mm	7.008 in	2.9 dBi	1 GHz	300 MHz	General ISM	Connector Mount	Whip Straight	380 MHz 410 MHz 450 MHz	Alarms ISM Remote Control Security Systems	1.9	RP-SMA Male
TE Connectivity Linx ANT-418-USP-T	1	2.62 mm	0.103 in	-8.9 dBi	1 GHz	300 MHz	General ISM	Surface Mount	Chip	418 MHz	Alarms ISM Remote Control Security Systems	2	Solder	423 MHz	413 MHz
TE Connectivity Linx ANT-418-MHW-RPS-S	1			2.1 dBi	1 GHz	300 MHz	General ISM	Adhesive	Whip Center-Fed Double	418 MHz	Alarms ISM Remote Control Security Systems	1.9	RP-SMA Male	428 MHz	408 MHz	150 mm	Cable - 2m	5.906 in
TE Connectivity Linx ANT-418-PW-RA	1		5.18 in	2 dBic	1 GHz	300 MHz	General ISM		Tilt Whip	418 MHz	Alarms ISM Remote Control Security Systems	2	Screw-Mount	427 MHz	409 MHz	131.57 mm
TE Connectivity Linx ANT-418-WRT-RPS	1		1.063 in	-1.3 dBi	1 GHz	300 MHz	General ISM		Dome	400 MHz 410 MHz	Alarms ISM Remote Control Security Systems	1.9	RP-SMA Male	426 MHz	409 MHz	27 mm	Cable		216 mm
TE Connectivity Linx ANT-418-HETH	1		0.35 in	1.7 dBi	1 GHz	300 MHz	General ISM	Through Hole	Helical	418 MHz	Alarms ISM Remote Control Security Systems	2	Solder	443 MHz	393 MHz	8.89 mm
TE Connectivity Linx ANT-418-CW-HW-SMA	1	120 mm	4.724 "	0 dBi	1 GHz	300 MHz	General ISM	Connector Mount	Whip Straight	418 MHz	Alarms ISM Remote Control Security Systems	2		433 MHz	403 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	250	$ 14.85

Description

General part information

ANT-418 Series

400MHz, 410MHz Alarms, ISM, Remote Control, Security Systems Dome RF Antenna 409MHz ~ 426MHz -1.3dBi RP-SMA Male Panel Mount
