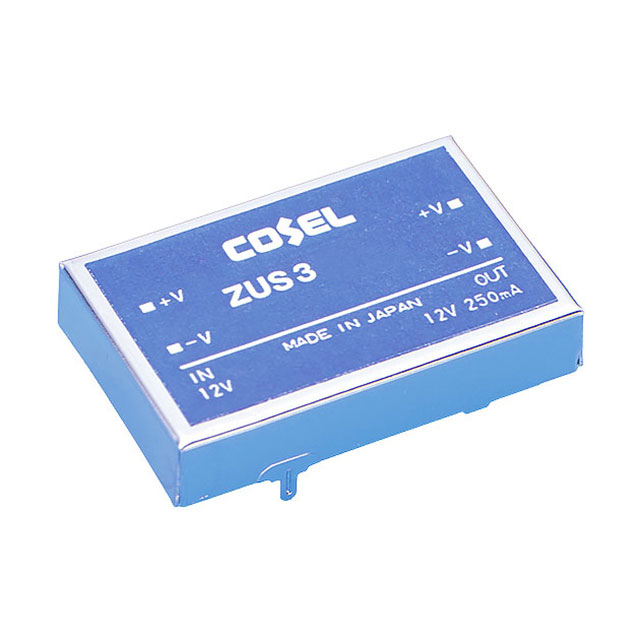

ZUS32412-G
ObsoleteCosel USA, Inc.
DC DC CONVERTER 12V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZUS32412-G
ObsoleteCosel USA, Inc.
DC DC CONVERTER 12V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZUS32412-G |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 250 mA |
| Efficiency | 75 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -20 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 1.38 " |
| Size / Dimension [x] | 35 mm |
| Size / Dimension [y] | 0.91 in |
| Size / Dimension [y] | 23 mm |
| Size / Dimension [z] | 0.28 " |
| Size / Dimension [z] | 7 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 500 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ZUS32412 Series
Isolated Module DC DC Converter 1 Output 12V 250mA 18V - 36V Input
