PX0941/04/P

Active

BULGIN LIMITED

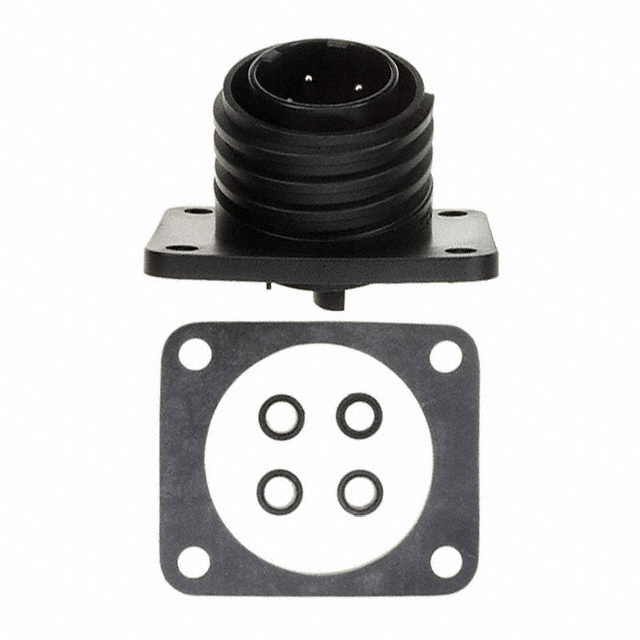

CIRCULAR CONNECTOR, BUCCANEER 900 SERIES, PANEL MOUNT PLUG, 4 CONTACTS, SCREW PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

PX0941/04/P

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER 900 SERIES, PANEL MOUNT PLUG, 4 CONTACTS, SCREW PIN

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PX0941/04/P

Cable Opening [Max] [diameter]	13 mm
Cable Opening [Max] [diameter]	0.512 in
Cable Opening [Min] [diameter]	0.276 in
Cable Opening [Min] [diameter]	7 mm
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	32 A
Features	UV Resistant
Ingress Protection	IP68, IP69K
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions [custom]	1
Number of Positions [custom]	3
Number of Positions [custom]	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Screw
Voltage Rating	600 VAC

PX0941 Series

Part	Contact Material	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Mounting Feature	Shielding	Connector Type	Number of Positions	Termination	Primary Material	Color	Features	Voltage Rating	Ingress Protection	Contact Finish - Mating	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Material Flammability Rating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
BULGIN LIMITED PX0941/02/P	Brass	Keyed	85 °C	-40 °C	32 A	Flange	Unshielded	Male Pins Receptacle	2	Screw	Plastic	Black	UV Resistant	600 VAC	IP68 IP69K	Nickel	0.276 in	7 mm	13 mm	0.512 in	UL94 V-0
BULGIN LIMITED PX0941/04/P	Brass	Keyed	85 °C	-40 °C	32 A	Flange	Unshielded	Male Pins Receptacle		Screw	Plastic	Black	UV Resistant	600 VAC	IP68 IP69K	Nickel	0.276 in	7 mm	13 mm	0.512 in	UL94 V-0	1	3	4
BULGIN LIMITED PX0941/07/S	Brass	Keyed	85 °C	-40 °C	32 A	Flange	Unshielded	Receptacle Female Sockets	7	Screw	Plastic	Black	UV Resistant	430 VAC/DC	IP68 IP69K	Nickel	0.276 in	7 mm	13 mm	0.512 in	UL94 V-0
BULGIN LIMITED PX0941/05/S	Brass	Keyed	85 °C	-40 °C	32 A	Flange	Unshielded	Receptacle Female Sockets	5	Screw	Plastic	Black	Trailing Neutral UV Resistant	600 VAC	IP68 IP69K	Nickel	0.276 in	7 mm	13 mm	0.512 in	UL94 V-0
BULGIN LIMITED PX0941/07/P	Brass	Keyed	85 °C	-40 °C	32 A	Flange	Unshielded	Male Pins Receptacle	7	Screw	Plastic	Black	UV Resistant	430 VAC/DC	IP68 IP69K	Nickel	0.276 in	7 mm	13 mm	0.512 in	UL94 V-0
BULGIN LIMITED PX0941/03/S	Brass	Keyed	85 °C	-40 °C	32 A	Flange	Unshielded	Receptacle Female Sockets		Screw	Plastic	Black	UV Resistant	600 VAC	IP68 IP69K	Nickel	0.276 in	7 mm	13 mm	0.512 in	UL94 V-0		2	3	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 53.33
		20	$ 48.94
		40	$ 45.49
		100	$ 42.98

Description

General part information

PX0941 Series

4 (3 Power + PE) Position Circular Connector Receptacle, Male Pins Screw

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
