RR9KG4000T00CIMR6B

Active

GlobTek, Inc.

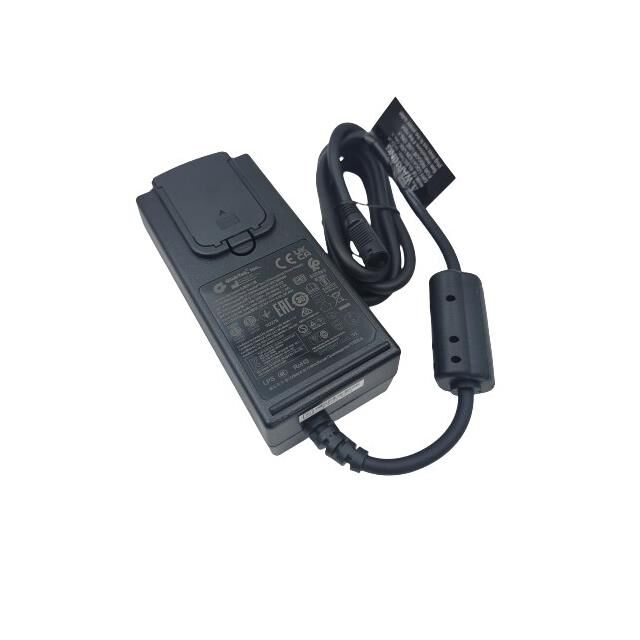

AC/DC DSKTP/WALL MT ADPT 15V 60W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADPT 15V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	RR9KG4000T00CIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	EAC, VCCI, ETL, LPS, CE, CB, RCM, UKRSepro, PSE, CCC, BSMI, cETLus, UL
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	4 A
Efficiency	Level VI
Form	Desktop, Wall Mount
Input Connector	IEC 320-C8, Multi-Blade (Sold Separately)
Input Type	Cord, Multi-Blade
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug Kit, 1.3mm x 3.5mm
Power (Watts)	60 W
Region Utilized	International
Size / Dimension [x]	4.63 in
Size / Dimension [x]	117.5 mm
Size / Dimension [y]	53.5 mm
Size / Dimension [y]	2.11 in
Size / Dimension [z]	36.6 mm
Size / Dimension [z]	1.44 "
Standard Number	1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	15 VDC

Part	Region Utilized	Applications	Current - Output (Max) [Max]	Approval Agency	Standard Number	Form	Input Type	Efficiency	No Load Power Consumption [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Power (Watts)	Output Connector	Input Connector	Cord Length	Cord Length	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]
GlobTek, Inc. RR9KG4000T00CIMR6B	International	Household Appliances ITE (Commercial) Medical	4 A	BSMI CB CCC CE cETLus EAC ETL LPS PSE RCM UKRSepro UL VCCI	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Desktop Wall Mount	Cord Multi-Blade	Level VI	150 mW	90 VAC	264 VAC	15 VDC	60 W	1.3mm x 3.5mm Barrel Plug Kit	IEC 320-C8 Multi-Blade (Sold Separately)	1.2 m	47.2 in	36.6 mm	4.63 in	53.5 mm	1.44 "	117.5 mm	2.11 in	-20 C	40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15V 60 W AC/DC External Desktop, Wall Mount (Class II) Adapter Cord, Multi-Blade (Sold Separately) Input
