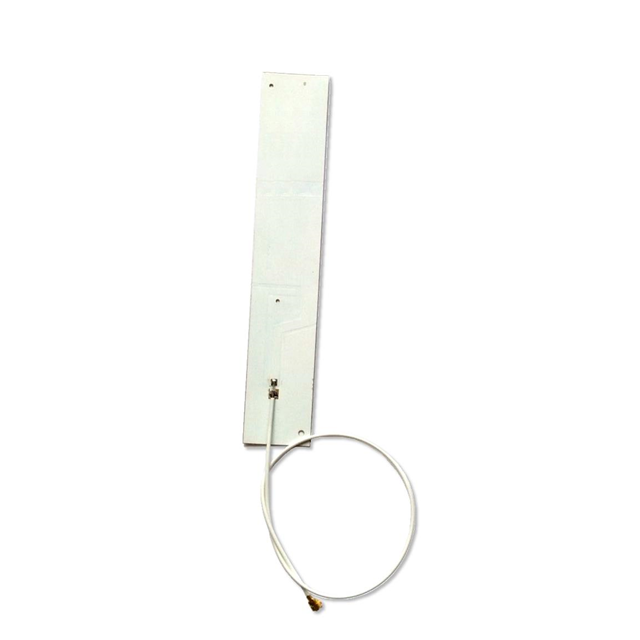

ECHO36/0.1M/IPEX/S/S/26
ActiveSiretta Ltd
2G/3G/4G EMBEDDED SMALL FPC ANTE
Deep-Dive with AI
Search across all available documentation for this part.
ECHO36/0.1M/IPEX/S/S/26
ActiveSiretta Ltd
2G/3G/4G EMBEDDED SMALL FPC ANTE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ECHO36/0.1M/IPEX/S/S/26 |
|---|---|
| Applications | GSM, Wi-Fi, WLAN, 3G, LTE, UMTS, 2G, 4G |
| Features | Cable |
| Features | 100 mm |
| Frequency (Center/Band) | 829 MHz, 2.205 GHz |
| Frequency Group [Max] | 1 GHz, 3 GHz |
| Frequency Group [Min] | 300 MHz, 2 GHz |
| Frequency Range [Max] | 960 MHz, 2.7 GHz |
| Frequency Range [Min] | 698 MHz, 1.71 GHz |
| Gain | 3 dBi |
| Number of Bands | 2 |
| RF Family/Standard | Cellular, WiFi |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.96 | |
| 10 | $ 6.29 | |||
| 25 | $ 6.00 | |||
| 100 | $ 5.21 | |||
| 250 | $ 5.15 | |||
Description
General part information
ECHO36 Series
RF ANTENNA 2G, 3G, 4G, GSM, LTE, UMTS, Wi-Fi, WLAN Flat Patch Surface Mount
