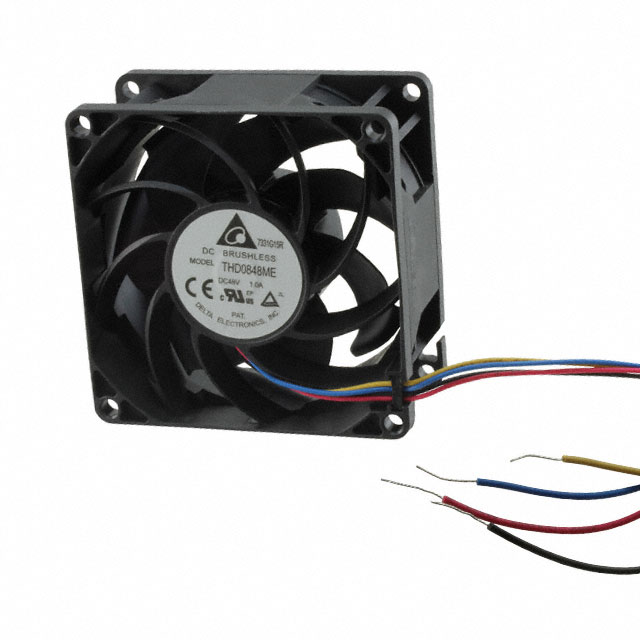

THD0848ME
ActiveDelta Electronics
FAN AXIAL 80X38MM 48VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
THD0848ME
ActiveDelta Electronics
FAN AXIAL 80X38MM 48VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | THD0848ME |
|---|---|
| Air Flow | 3.58 mł/min |
| Air Flow | 128 CFM |
| Approval Agency | cURus, CE, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.55 A |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 60 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 26.4 W |
| RPM | 9500 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure | 1.476 in H2O |
| Static Pressure | 367.6 Pa |
| Termination | 4 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Voltage Range [Max] | 75 VDC |
| Voltage Range [Min] | 36 VDC |
| Weight | 160.12 g |
| Weight | 0.353 lb |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 35.16 | |
| 10 | $ 32.70 | |||
| 25 | $ 29.43 | |||
| 90 | $ 26.98 | |||
| 180 | $ 25.35 | |||
| 270 | $ 22.08 | |||
Description
General part information
THD0848 Series
Fan Tubeaxial 48VDC Square - 80mm L x 80mm H Ball 128.0 CFM (3.58m³/min) 4 Wire Leads
