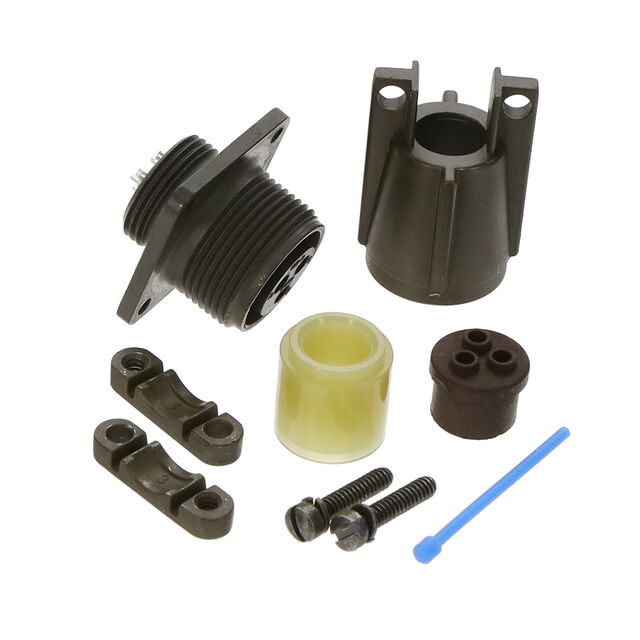

MS3100F14S-7S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	MS3100F14S-7S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Features	Cable Clamp, Backshell
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	14S-7
Shielding	Unshielded
Voltage Rating	700 VDC, 500 VAC

Part	Connector Type	Voltage Rating	Contact Finish - Mating	Applications	Qualification	Current Rating (Amps)	Ingress Protection	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Shell Material	Features	Shielding	Shell Size - Insert	Insert Material	Mounting Feature	Orientation	Color	Contact Material	Number of Positions	Cable Opening [custom]	Cable Opening [custom]	Grade
Amphenol Industrial Operations MS3100F14-3S
Amphenol Industrial Operations MS3100F14S-7S	Receptacle Female Sockets	500 VAC 700 VDC	Silver	Marine Military	MIL-5015	13 A	Environment Resistant	Metal	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Aluminum Alloy	Backshell Cable Clamp	Unshielded	14S-7	Neoprene	Flange	N	Olive Drab	Copper Alloy
Amphenol Industrial Operations MS3100F14S-6P	Male Pins Receptacle		Silver	Marine Military	MIL-DTL-5015		Environment Resistant	Metal	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Aluminum Alloy	Backshell Cable Clamp	Unshielded	14S-6	Neoprene	Flange	N	Olive Drab	Copper Alloy	6	10.3 mm	0.406 in	Military
Amphenol Industrial Operations MS3100F14S-7P	Male Pins Receptacle	500 VAC 700 VDC	Silver	Marine Military	MIL-5015	13 A	Environment Resistant	Metal	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Aluminum Alloy	Backshell Cable Clamp	Unshielded	14S-7	Neoprene	Flange	N	Olive Drab	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Female Sockets Solder Cup
