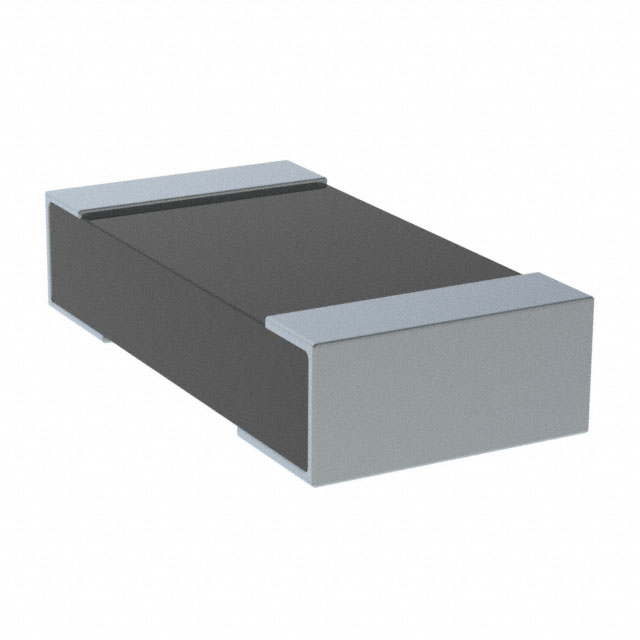

UR73VD2BTTD20L0F
ActiveKOA Speer Electronics, Inc.
RES 20M OHM 1% 1/2W 1206
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UR73VD2BTTD20L0F
ActiveKOA Speer Electronics, Inc.
RES 20M OHM 1% 1/2W 1206
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UR73VD2BTTD20L0F |
|---|---|
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Current Sense |
| Height - Seated (Max) [Max] | 0.7 mm |
| Height - Seated (Max) [Max] | 0.028 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Power (Watts) | 0.5 W |
| Power (Watts) | 0.5 W |
| Ratings | AEC-Q200 |
| Resistance | 0.02 Ohms |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 1206 |
| Temperature Coefficient | 75 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.83 | |
| 10 | $ 0.54 | |||
| 25 | $ 0.46 | |||
| 50 | $ 0.41 | |||
| 100 | $ 0.37 | |||
| 250 | $ 0.32 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.27 | |||
| Digi-Reel® | 1 | $ 0.83 | ||
| 10 | $ 0.54 | |||
| 25 | $ 0.46 | |||
| 50 | $ 0.41 | |||
| 100 | $ 0.37 | |||
| 250 | $ 0.32 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.27 | |||
| Tape & Reel (TR) | 5000 | $ 0.22 | ||
| 10000 | $ 0.21 | |||
| 15000 | $ 0.20 | |||
| 25000 | $ 0.19 | |||
| 35000 | $ 0.19 | |||
| 50000 | $ 0.18 | |||
Description
General part information
UR73VD2B Series
20 mOhms ±1% 0.5W, 1/2W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, Current Sense Thick Film
