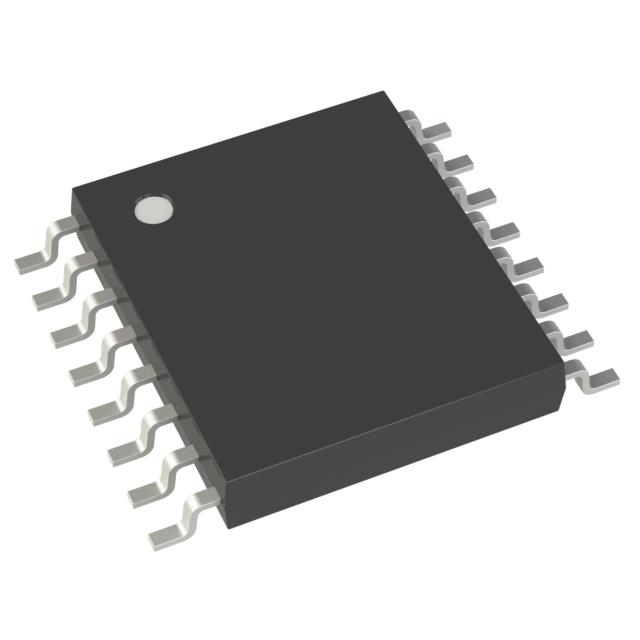

MLX90316KGO-BCG-300-TU

Active

Melexis Technologies NV

SENSOR ROTARY 360DEG SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPTC-04, Daughterboard Selection Guide Datasheet

MLX90316KGO-BCG-300-TU

Active

Melexis Technologies NV

SENSOR ROTARY 360DEG SMD

Deep-Dive with AI

DocumentsPTC-04, Daughterboard Selection Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MLX90316KGO-BCG-300-TU

Actuator Type	External Magnet, Not Included
For Measuring	Rotary Position
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output	PWM
Package / Case	16-TSSOP
Package / Case [x]	0.173 in
Package / Case [y]	4.4 mm
Rotation Angle - Electrical, Mechanical [Max]	360 °
Rotation Angle - Electrical, Mechanical [Min]	0 °
Supplier Device Package	16-TSSOP
Technology	Hall Effect
Termination Style	Gull Wing
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

MLX90316 Series

Part	Package / Case [x]	Package / Case	Package / Case [y]	For Measuring	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Rotation Angle - Electrical, Mechanical [Max]	Termination Style	Output	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Technology	Supplier Device Package
Melexis Technologies NV MLX90316KGO-BDG-100-TU	0.173 in	16-TSSOP	4.4 mm	Rotary Position	4.5 V	5.5 V	Surface Mount	360 °	Gull Wing	SPI	125 °C	-40 °C	External Magnet Not Included	Hall Effect	16-TSSOP
Melexis Technologies NV MLX90316LDC-BDG-100-TU	0.154 in	8-SOIC	3.9 mm	Rotary Position	4.5 V	5.5 V	Surface Mount	360 °	Gull Wing	SPI			External Magnet Not Included	Hall Effect	8-SOIC
Melexis Technologies NV MLX90316KDC-BCG-000-TU	0.154 in	8-SOIC	3.9 mm	Rotary Position	4.5 V	5.5 V	Surface Mount	360 °	Gull Wing	Analog Voltage	125 °C	-40 °C	External Magnet Not Included	Hall Effect	8-SOIC
Melexis Technologies NV MLX90316KGO-BCG-200-TU	0.173 in	16-TSSOP	4.4 mm	Rotary Position	4.5 V	5.5 V	Surface Mount	360 °	Gull Wing	Analog Voltage	125 °C	-40 °C	External Magnet Not Included	Hall Effect	16-TSSOP
Melexis Technologies NV MLX90316LDC-BDG-102-SP	0.154 in	8-SOIC	3.9 mm	Rotary Position	4.5 V	5.5 V	Surface Mount	360 °	Gull Wing	SPI			External Magnet Not Included	Hall Effect	8-SOIC
Melexis Technologies NV MLX90316LGO-BCG-000-SP	0.173 in	16-TSSOP	4.4 mm	Rotary Position	4.5 V	5.5 V	Surface Mount	360 °	Gull Wing	Analog Voltage			External Magnet Not Included	Hall Effect	16-TSSOP
Melexis Technologies NV MLX90316EGO-BDG-100-RE	0.173 in	16-TSSOP	4.4 mm	Rotary Position	4.5 V	5.5 V	Surface Mount	360 °	Gull Wing	SPI	85 °C	-40 °C	External Magnet Not Included	Hall Effect	16-TSSOP
Melexis Technologies NV MLX90316LDC-BDG-100-SP	0.154 in	8-SOIC	3.9 mm	Rotary Position	4.5 V	5.5 V	Surface Mount	360 °	Gull Wing	SPI			External Magnet Not Included	Hall Effect	8-SOIC
Melexis Technologies NV MLX90316LGO-BCG-000-RE	0.173 in	16-TSSOP	4.4 mm	Rotary Position	4.5 V	5.5 V	Surface Mount	360 °	Gull Wing	Analog Voltage			External Magnet Not Included	Hall Effect	16-TSSOP
Melexis Technologies NV MLX90316KGO-BCG-300-TU	0.173 in	16-TSSOP	4.4 mm	Rotary Position	4.5 V	5.5 V	Surface Mount	360 °	Gull Wing	PWM	125 °C	-40 °C	External Magnet Not Included	Hall Effect	16-TSSOP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1040	$ 7.92

Description

General part information

MLX90316 Series

Hall Effect Sensor Rotary Position External Magnet, Not Included Gull Wing

Documents

Technical documentation and resources

PTC-04, Daughterboard Selection Guide

Datasheet
