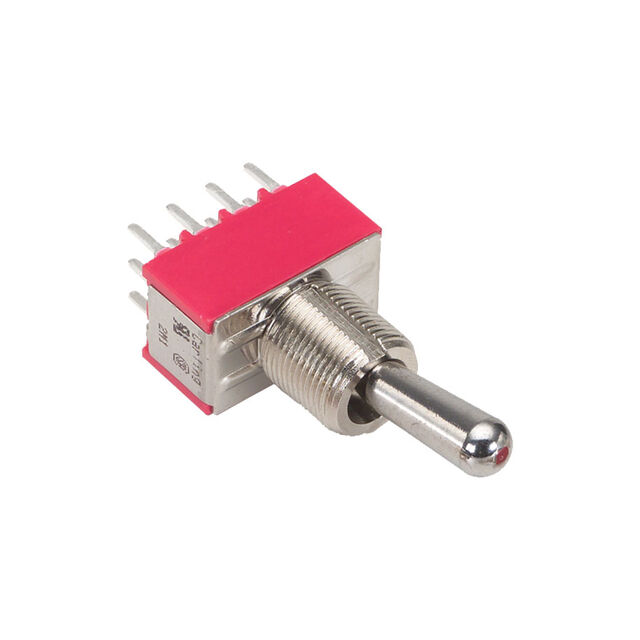

2M1-SP1-T2-B3-M2RE

Active

Carling Technologies

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

2M1-SP1-T2-B3-M2RE

Active

Carling Technologies

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2M1-SP1-T2-B3-M2RE

Actuator Length [x]	5.4 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

2M1-SP1 Series

Part	Circuit	Voltage Rating - AC	Illumination	Current Rating (Amps)	Termination Style	Actuator Material	Ingress Protection	Bushing Thread	Actuator Length [z]	Mounting Type	Electrical Life	Features	Voltage Rating - DC	Actuator Type	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Actuator Length [x]
Carling Technologies 2M1-SP1-T1-B2-VS2QE	SPDT	125 V	Non-Illuminated	5 A	PC Pin	Brass Chrome Plated	IP67 - Dust Tight Waterproof	Unthreaded	10.4 mm	Through Hole	50000 Cycles	Epoxy Sealed Terminals	28 V	Standard Round	On-On	-30 ░C	85 °C
Carling Technologies 2M1-SP1-T6-B6-VS5-QE	SPDT	125 V	Non-Illuminated	5 A	PC Pin	Brass Chrome Plated	IP67 - Dust Tight Waterproof	1/4-40			50000 Cycles	Epoxy Sealed Terminals	28 V	Flatted	On-On	-30 ░C	85 °C	0.25 in	12.1 mm
Carling Technologies 2M1-SP1-T1-B4-M6RE	SPDT	20 V	Non-Illuminated	0.4 VA	PC Pin	Brass Chrome Plated		Unthreaded	10.4 mm	Through Hole Right Angle	50000 Cycles	Epoxy Sealed Terminals	20 V	Standard Round	On-On	-30 ░C	85 °C
Carling Technologies 2M1-SP1-TA-B1-M6RE	SPDT	20 V	Non-Illuminated	0.4 VA	PC Pin	Brass Chrome Plated		1/4-40		Panel Mount Right Angle	50000 Cycles	Epoxy Sealed Terminals	20 V	Locking Lever	On-On	-30 ░C	85 °C	0.25 in
Carling Technologies 2M1-SP1-T1-B7-M1QE	SPDT	125 V	Non-Illuminated	5 A	Solder Lug	Brass Chrome Plated	IP67 - Dust Tight Waterproof	1/4-40			50000 Cycles	Epoxy Sealed Terminals	28 V	Standard Round	On-On	-30 ░C	85 °C	0.25 in	10.39 mm
Carling Technologies 2M1-SP1-T2-B3-M2RE	SPDT	20 V	Non-Illuminated	0.4 VA	PC Pin	Brass Chrome Plated		1/4-40			50000 Cycles	Epoxy Sealed Terminals	20 V	Standard Round	On-On	-30 ░C	85 °C	0.25 in	5.4 mm
Carling Technologies 2M1-SP1-T2-B1-M2QE	SPDT	125 V	Non-Illuminated	5 A	PC Pin	Brass Chrome Plated	IP67 - Dust Tight Waterproof	1/4-40			50000 Cycles	Epoxy Sealed Terminals	28 V	Standard Round	On-On	-30 ░C	85 °C	0.25 in	5.4 mm
Carling Technologies 2M1-SP1-T6-B5-VS5QE	SPDT	125 V	Non-Illuminated	5 A	PC Pin	Brass Chrome Plated	IP67 - Dust Tight Waterproof	1/4-40			50000 Cycles	Epoxy Sealed Terminals	28 V	Flatted	On-On	-30 ░C	85 °C	0.25 in	12.1 mm
Carling Technologies 2M1-SP1-T7-B0-M1GE	SPDT	125 V	Non-Illuminated	5 A	Solder Lug	Brass Chrome Plated	IP67 - Dust Tight Waterproof	15/32-32			50000 Cycles	Epoxy Sealed Terminals	28 V	Anti-Rotation	On-On	-30 ░C	85 °C	11.91 mm	11.68 mm
Carling Technologies 2M1-SP1-T8-B0-M2GE	SPDT	125 V	Non-Illuminated	5 A	PC Pin	Brass Chrome Plated	IP67 - Dust Tight Waterproof	15/32-32			50000 Cycles	Epoxy Sealed Terminals	28 V	Anti-Rotation	On-On	-30 ░C	85 °C	11.91 mm	17.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.59
		10	$ 5.04
		25	$ 4.79
		50	$ 4.59
		100	$ 4.43
		250	$ 4.21
		500	$ 3.88
		1000	$ 3.70

Description

General part information

2M1-SP1 Series

Toggle Switch SPDT Panel Mount
