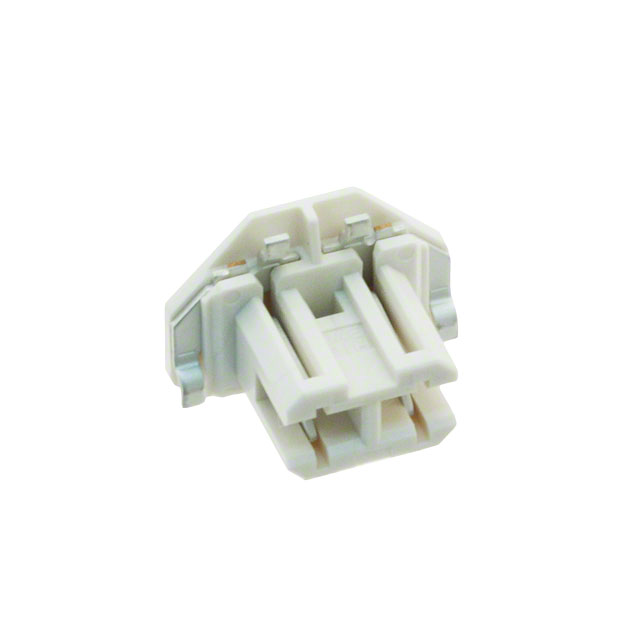

ES3B002WF1R1000

Obsolete

JAE Electronics

CONN SSL RCPT 2POS 3.6MM SOLDER

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN SSL RCPT 2POS 3.6MM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	ES3B002WF1R1000

Connector Type	Receptacle
Contact Finish	Tin
Contact Material	Copper Alloy
Housing Color	White
Housing Material	Liquid Crystal Polymer (LCP)
Mating Cycles	20
Mounting Type	Surface Mount, Bottom Entry, Through Board
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Style	Board to Board - Card Edge
Termination	Solder
Voltage Rating	200 V

Part	Mounting Type	Connector Type	Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Housing Material	Mating Cycles	Number of Positions	Housing Color	Contact Material	Termination	Contact Finish
JAE Electronics ES3B002WF1R1000	Bottom Entry Surface Mount Through Board	Receptacle	Board to Board - Card Edge	-40 °C	105 ░C	200 V	Liquid Crystal Polymer (LCP)	20	2	White	Copper Alloy	Solder	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SSL Connector 2 Position Receptacle Board to Board - Card Edge 0.142" (3.60mm) Solder
