SC5010ULTRT
NRNDSemtech Corporation
IC LED DRVR CTRL PWM 30MA 28MLPQ
Deep-Dive with AI
Search across all available documentation for this part.
SC5010ULTRT
NRNDSemtech Corporation
IC LED DRVR CTRL PWM 30MA 28MLPQ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SC5010ULTRT |
|---|---|
| Applications | Backlight |
| Current - Output / Channel | 30 mA |
| Dimming | Analog, PWM |
| Frequency [Max] | 2.2 MHz |
| Frequency [Min] | 200 kHz |
| Internal Switch(s) | False |
| Mounting Type | Surface Mount |
| Number of Outputs | 8 |

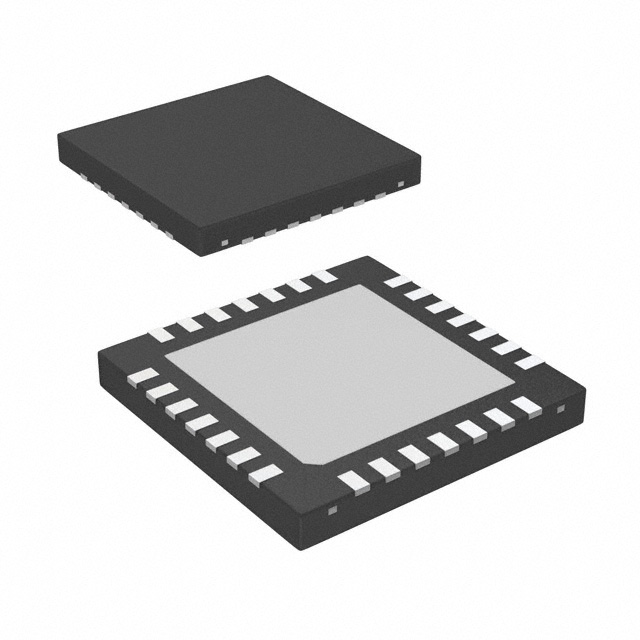

| Package / Case | 28-UFQFN Exposed Pad |
| Supplier Device Package | 28-MLPQ (4x4) |
| Topology | Step-Up (Boost) |
| Type | DC DC Controller |
| Voltage - Supply (Max) [Max] | 27 V |
| Voltage - Supply (Min) [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 3.33 | |
Description
General part information
SC5010 Series
LED Driver IC 8 Output DC DC Controller Step-Up (Boost) Analog, PWM Dimming 30mA 28-MLPQ (4x4)
Documents
Technical documentation and resources
No documents available
