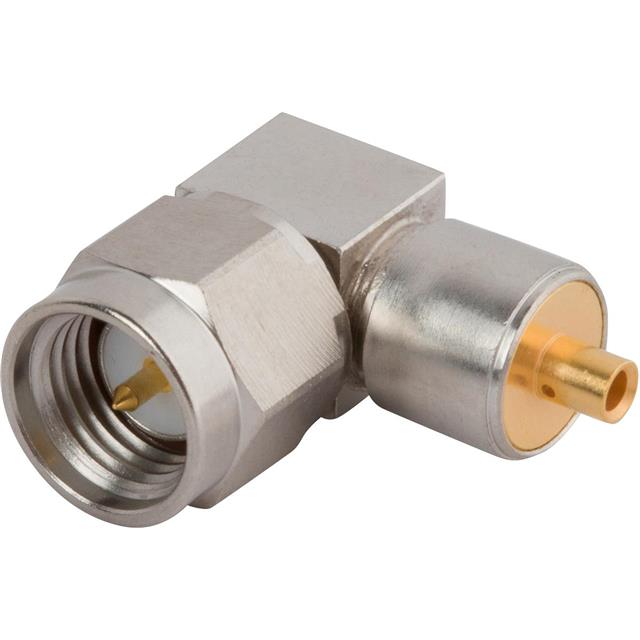

SF2915-6605

Active

Amphenol SV Microwave

CONN SMA PLUG R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN SMA PLUG R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SF2915-6605

Body Material	Stainless Steel
Cable Group	0.085 in
Cable Group	RG-405
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Shield Termination	Solder

Part	Housing Color	Mounting Type	Cable Group	Cable Group	Frequency - Max [Max]	Connector Style	Connector Type	Mating Cycles	Dielectric Material	Contact Termination	Center Contact Material	Shield Termination	Center Contact Plating	Number of Ports	Body Material	Impedance
Amphenol SV Microwave SF2915-6605	Silver	Free Hanging (In-Line) Right Angle	0.085 in	RG-405	18 GHz	SMA	Male Pin Plug	500	Polytetrafluoroethylene (PTFE)	Solder	Beryllium Copper	Solder	Gold	1	Stainless Steel	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
