833-044-524-204
ActiveEDAC Inc.

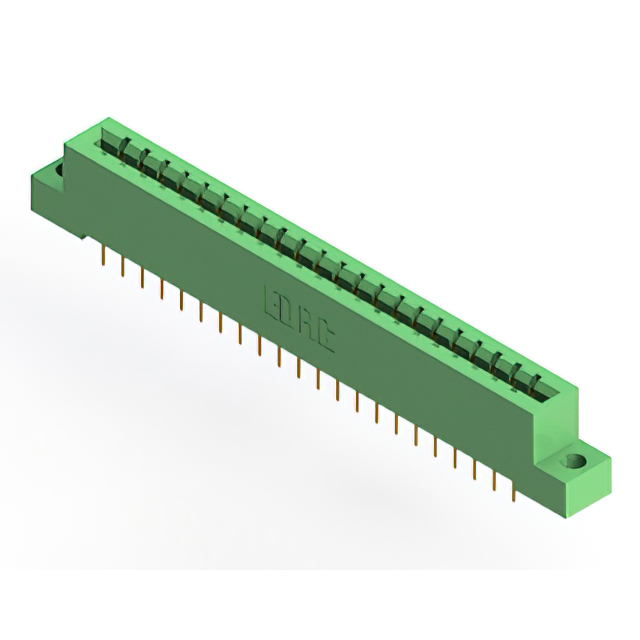

CONN EDGE DUAL FMALE 44POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
833-044-524-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 44POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 833-044-524-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 44 |
| Number of Positions/Bay/Row [custom] | 22 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
833-044 Series
...
| Part | Contact Finish | Flange Feature | Mounting Type | Material - Insulation | Read Out | Contact Type | Card Type | Contact Material | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Termination Rows | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | 4-40 Threaded Insert Top Mount Opening | Through Hole | Diallyl Phthalate (DAP) | Dual | Cantilever | Non Specified - Dual Edge | Copper Alloy | 22 | 0.156 in | 3.96 mm | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 2 | 2 | 44 | |||||
EDAC Inc. | Gold | Flush Mount Top Opening Unthreaded | Through Hole | Diallyl Phthalate (DAP) | Dual | Cantilever | Non Specified - Dual Edge | Copper Alloy | 22 | 0.156 in | 3.96 mm | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 2 | 2 | 44 | 3.96 mm | 0.156 in | |||
EDAC Inc. | Gold | Floating Bobbin Flush Mount | Board Edge Straddle Mount | Diallyl Phthalate (DAP) | Dual | Cantilever | Non Specified - Dual Edge | Copper Alloy | 22 | 0.156 in | 3.96 mm | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 2 | 2 | 44 | 2.95 mm | 0.116 in | Card Extender | ||
EDAC Inc. | Gold | Side Mount Opening Unthreaded | Through Hole | Diallyl Phthalate (DAP) | Dual | Cantilever | Non Specified - Dual Edge | Copper Alloy | 22 | 0.156 in | 3.96 mm | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 2 | 2 | 44 | 3.25 mm | 0.128 in | |||
EDAC Inc. | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Diallyl Phthalate (DAP) | Dual | Cantilever | Non Specified - Dual Edge | Copper Alloy | 22 | 0.156 in | 3.96 mm | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Wire Wrap | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 2 | 2 | 44 | |||||
EDAC Inc. | Gold | Floating Bobbin Flush Mount | Through Hole | Diallyl Phthalate (DAP) | Dual | Cantilever | Non Specified - Dual Edge | Copper Alloy | 22 | 0.156 in | 3.96 mm | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 2 | 2 | 44 | 2.95 mm | 0.116 in | |||
EDAC Inc. | Gold | Side Mount Opening Unthreaded | Through Hole | Diallyl Phthalate (DAP) | Dual | Cantilever | Non Specified - Dual Edge | Copper Alloy | 22 | 0.156 in | 3.96 mm | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Wire Wrap | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 2 | 2 | 44 | 3.25 mm | 0.128 in | |||
EDAC Inc. | Gold | Flush Mount Top Opening Unthreaded | Board Edge Straddle Mount | Diallyl Phthalate (DAP) | Dual | Cantilever | Non Specified - Dual Edge | Copper Alloy | 22 | 0.156 in | 3.96 mm | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 2 | 2 | 44 | 3.25 mm | 0.128 " | Card Extender | ||
EDAC Inc. | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole Right Angle | Diallyl Phthalate (DAP) | Dual | Cantilever | Non Specified - Dual Edge | Copper Alloy | 22 | 0.156 in | 3.96 mm | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 2 | 2 | 44 | |||||
EDAC Inc. | Gold | Through Hole Right Angle | Diallyl Phthalate (DAP) | Dual | Cantilever | Non Specified - Dual Edge | Copper Alloy | 22 | 0.156 in | 3.96 mm | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 2 | 2 | 44 | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 42.89 | |
Description
General part information
833-044 Series
44 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
