QD50-0-SD
ActiveOSI Optoelectronics, Inc.
SENSOR PHOTODIODE 900NM TO8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QD50-0-SD
ActiveOSI Optoelectronics, Inc.
SENSOR PHOTODIODE 900NM TO8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QD50-0-SD |
|---|---|
| Active Area | 50 mm² |
| Current - Dark (Typ) | 30 nA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | TO-8 Style |
| Package / Case | 6 Leads |
| Response Time | 10 ns |
| Responsivity @ nm | 0.54 A/W |
| Voltage - DC Reverse (Vr) (Max) [Max] | 30 V |
| Wavelength | 900 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 444.95 | |
Description
General part information
QD50-0 Series

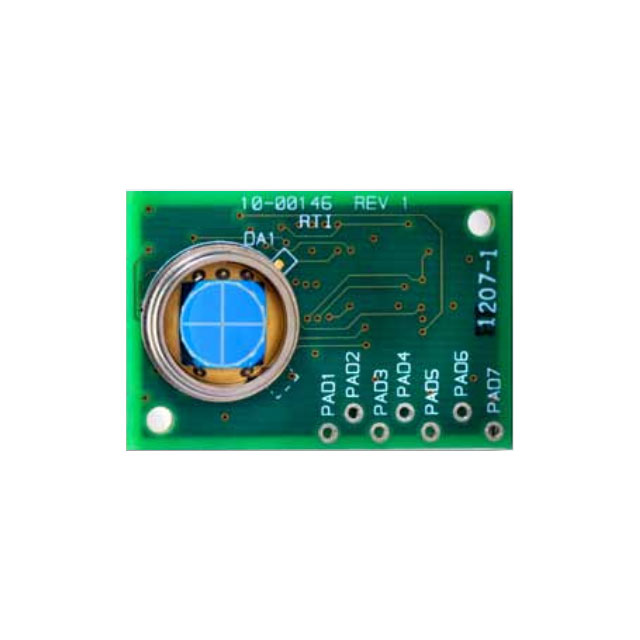

Photodiode 900nm 10ns TO-8 Style, 6 Leads
Documents
Technical documentation and resources
