1453B

Active

Hammond Manufacturing

BOX STEEL GRAY 9.5"L X 6.12"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX STEEL GRAY 9.5"L X 6.12"W

Technical Specifications

Parameters and characteristics for this part

Specification	1453B

Area (L x W)	58.1 in²
Area (L x W)	375 cm²
Color	Gray
Container Type	Box
Design	U Shaped Pieces
Features	Vented Panels, Separate Panel or Cover Thickness
Height [z]	153.67 mm
Height [z]	6.05 in
Material	Metal, Steel
Size / Dimension [x]	9.5 "
Size / Dimension [x]	241.3 mm
Size / Dimension [y]	155.45 mm
Size / Dimension [y]	6.12 "
Thickness	16 Gauge

Part	Area (L x W)	Area (L x W)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Design	Features	Color	Material	Thickness	Container Type	Height [z]	Height [z]
Hammond Manufacturing 1453B	58.1 in²	375 cm²	155.45 mm	9.5 "	241.3 mm	6.12 "	U Shaped Pieces	Separate Panel or Cover Thickness Vented Panels	Gray	Metal Steel	16 Gauge	Box	153.67 mm	6.05 in
Hammond Manufacturing 1453K	182 in²	1174 cm²	257.05 mm	18 in	457.2 mm	10.12 "	U Shaped Pieces	Separate Panel or Cover Thickness Vented Panels	Gray	Metal Steel	16 Gauge	Box
Hammond Manufacturing 1453C	78.3 in²	505 cm²	180.85 mm	11 in	279.4 mm	7.12 in	U Shaped Pieces	Separate Panel or Cover Thickness Vented Panels	Gray	Metal Steel	16 Gauge	Box	179.07 mm	7.05 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

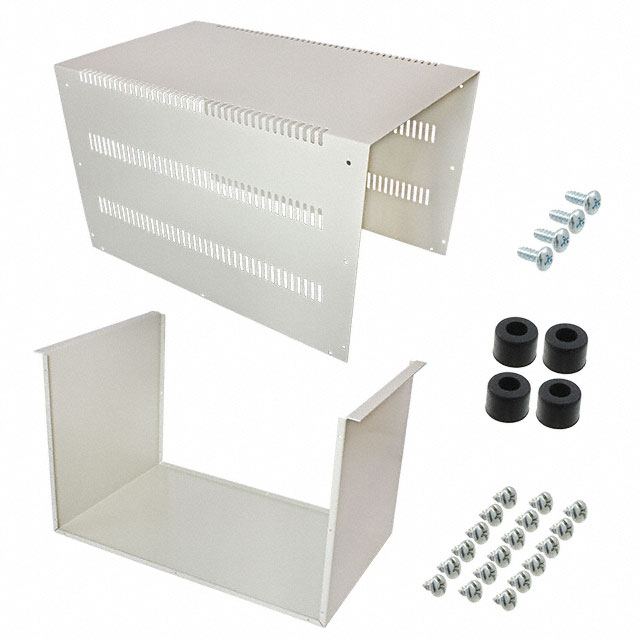

Box Metal, Steel Gray U Shaped Pieces 9.500" L x 6.120" W (241.30mm x 155.45mm) X 6.050" (153.67mm)

Technical documentation and resources

No documents available
