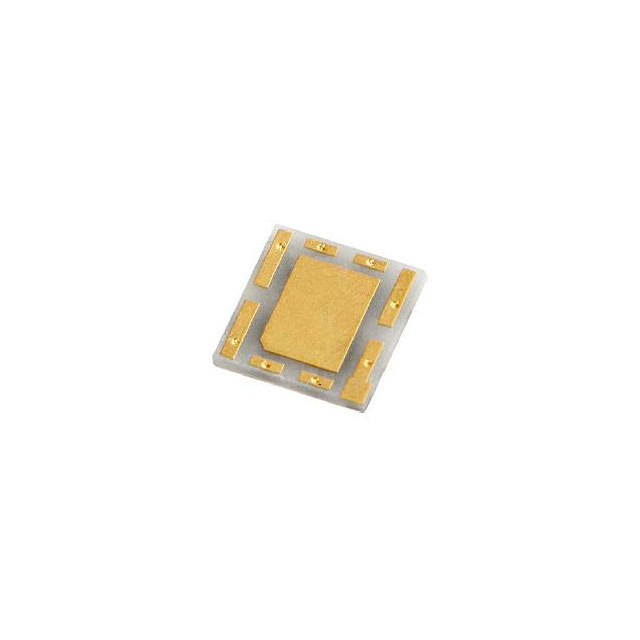

VLMU5200-385-140

Obsolete

Vishay General Semiconductor - Diodes Division

LED UV 700MA SMD

Search across all available documentation for this part.

Obsolete

Vishay General Semiconductor - Diodes Division

LED UV 700MA SMD

Technical Specifications

Parameters and characteristics for this part

Specification	VLMU5200-385-140

Current - DC Forward (If) (Max) [Max]	700 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	4-SMD, No Lead Exposed Pad
Radiant Intensity (Ie) Min @ If [Min]	513 mW/sr
Type	Ultraviolet (UV)
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ)	14.5 V
Wavelength	385 nm

Part	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Viewing Angle	Type	Orientation	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max) [Max]	Mounting Type	Wavelength	Radiant Intensity (Ie) Min @ If [Min]
Vishay General Semiconductor - Diodes Division VLMU5200-395-140	4-SMD No Lead Exposed Pad	85 °C	-40 °C	140 °	Ultraviolet (UV)	Top View	14.5 V	700 mA	Surface Mount	395 nm
Vishay General Semiconductor - Diodes Division VLMU5200-385-140	4-SMD No Lead Exposed Pad	85 °C	-40 °C	140 °	Ultraviolet (UV)	Top View	14.5 V	700 mA	Surface Mount	385 nm	513 mW/sr
Vishay General Semiconductor - Diodes Division VLMU5200-405-140	4-SMD No Lead Exposed Pad	85 °C	-40 °C	140 °	Ultraviolet (UV)	Top View	14.5 V	700 mA	Surface Mount	405 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Ultraviolet (UV) Emitter 385nm 14.5V 700mA 513mW/sr @ 350mA 140° 4-SMD, No Lead Exposed Pad
