145804070020829+
ActiveKyocera AVX
CONN PLUG 70POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
145804070020829+
ActiveKyocera AVX
CONN PLUG 70POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 145804070020829+ |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Height Above Board [z] | 0.03 in |
| Height Above Board [z] | 0.75 mm |
| Mated Stacking Heights | 0.9 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 70 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
145804 Series
| Part | Number of Rows | Contact Finish | Pitch [x] | Pitch [x] | Connector Type | Height Above Board [z] | Height Above Board [z] | Number of Positions | Mated Stacking Heights | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|
Kyocera AVX | 2 | Gold | 0.016 in | 0.4 mm | Outer Shroud Contacts Plug | 0.03 in | 0.75 mm | 70 | 0.9 mm | Surface Mount |
Kyocera AVX | 2 | Gold | 0.016 in | 0.4 mm | Outer Shroud Contacts Plug | 30 | Surface Mount | |||
Kyocera AVX | 2 | Gold | 0.016 in | 0.4 mm | Outer Shroud Contacts Plug | 20 | Surface Mount | |||
Kyocera AVX | ||||||||||
Kyocera AVX | 2 | Gold | 0.016 in | 0.4 mm | Outer Shroud Contacts Plug | 60 | Surface Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.19 | |
| 10 | $ 1.01 | |||
| 100 | $ 0.86 | |||
| 500 | $ 0.77 | |||
| 1000 | $ 0.73 | |||
| Tape & Reel (TR) | 5000 | $ 0.66 | ||
| 10000 | $ 0.63 | |||
| 15000 | $ 0.62 | |||
Description
General part information
145804 Series

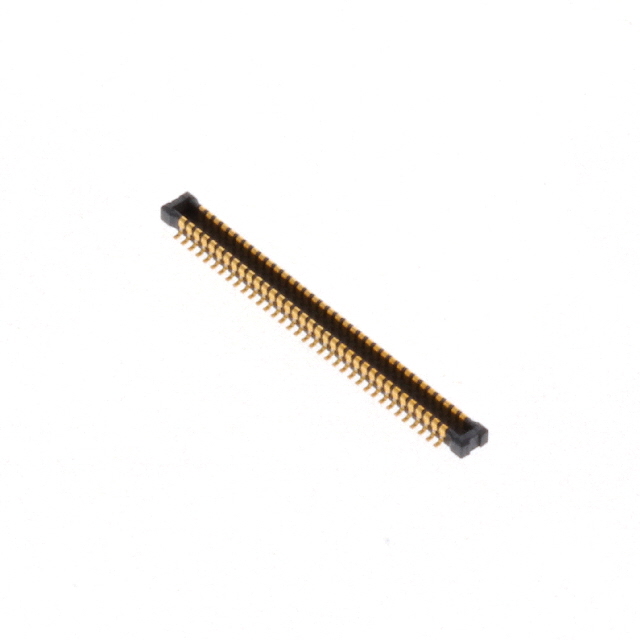

70 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
