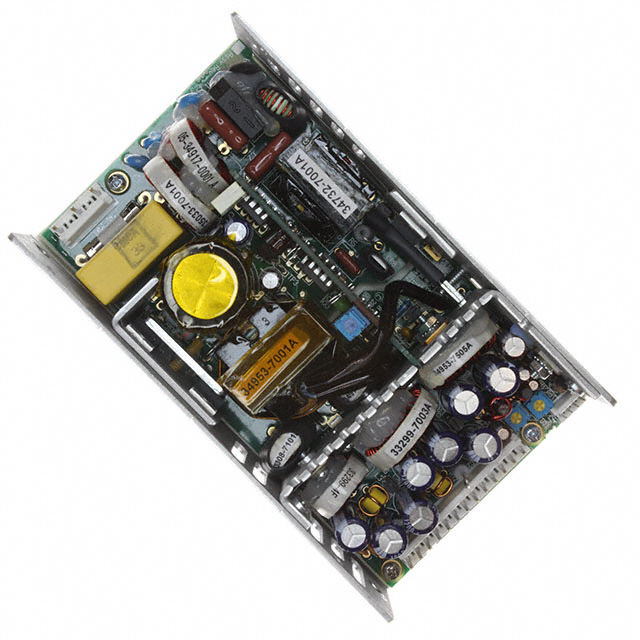

GPFC125HG

Active

SL POWER / Advanced Energy

AC/DC CNVRTR 3.3V 5V +/-12V 125W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CNVRTR 3.3V 5V +/-12V 125W

Technical Specifications

Parameters and characteristics for this part

Specification	GPFC125HG

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	9 A
Current - Output 2	4 A
Current - Output 3	2.5 A
Current - Output 4	300 mA
Efficiency	72 %
Features	Universal Input, Remote Sense, Adjustable Output, PFC
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	4
Power (Watts)	125 W
Size / Dimension [x]	6 in
Size / Dimension [x]	152.4 mm
Size / Dimension [y]	3.5 in
Size / Dimension [y]	88.9 mm
Size / Dimension [z]	1.5 "
Size / Dimension [z]	38.1 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	3.3 V
Voltage - Output 2	5 V
Voltage - Output 3	12 V

Part	Power (Watts)	Number of Outputs	Voltage - Output 1	Features	Efficiency	Current - Output 4	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Current - Output 3	Current - Output 2	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1	Approval Agency	Voltage - Output 3	Mounting Type	Voltage - Output 2	Voltage - Output 4
SL POWER / Advanced Energy GPFC125HG	125 W	4	3.3 V	Adjustable Output PFC Remote Sense Universal Input	72 %	300 mA	Open Frame	6 in	3.5 in	88.9 mm	152.4 mm	1.5 "	38.1 mm	2.5 A	4 A	ITE (Commercial)	90 VAC	264 VAC	9 A	CE	12 V	Chassis Mount	5 V
SL POWER / Advanced Energy GPFC125DG	125 W	4	5 V	Adjustable Output PFC Remote Sense Universal Input	72 %	300 mA	Open Frame	6 in	3.5 in	88.9 mm	152.4 mm	1.5 "	38.1 mm	2.5 A	3 A	ITE (Commercial)	90 VAC	264 VAC	9 A	CE	12 V	Chassis Mount	24 V
SL POWER / Advanced Energy GPFC125AG	125 W	4	5 V	Adjustable Output PFC Remote Sense Universal Input	72 %	300 mA	Open Frame	6 in	3.5 in	88.9 mm	152.4 mm	1.5 "	38.1 mm	2.5 A	4 A	ITE (Commercial)	90 VAC	264 VAC	9 A	CE	12 V	Chassis Mount	12 V
SL POWER / Advanced Energy GPFC125FG	125 W	4	5 V	Adjustable Output PFC Remote Sense Universal Input	72 %	300 mA	Open Frame	6 in	3.5 in	88.9 mm	152.4 mm	1.5 "	38.1 mm	2.5 A	3.5 A	ITE (Commercial)	90 VAC	264 VAC	9 A	CE	15 V	Chassis Mount	15 V	-5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 4 Output 3.3V 5V 12V -12V 90 ~ 264 VAC Input
