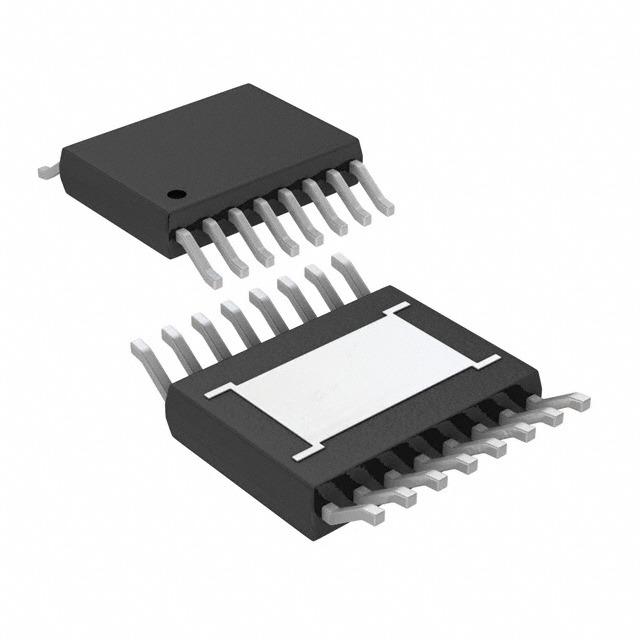

SPI-6631M
ObsoleteSanken Electric USA Inc.
IC MOTOR DRIVER PAR 16HSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SPI-6631M
ObsoleteSanken Electric USA Inc.
IC MOTOR DRIVER PAR 16HSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SPI-6631M |
|---|---|
| Current - Output | 3 A |
| Function | Driver |
| Interface | Logic |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -20 °C |
| Output Configuration | Half Bridge (3) |
| Package / Case | Exposed Pad, 16-SOIC |
| Package / Case [custom] | 0.295 in |
| Package / Case [custom] | 7.5 mm |
| Supplier Device Package | 16-HSOP |
| Technology | DMOS |
| Voltage - Load | 35 V |
| Voltage - Supply [Max] | 33 V |
| Voltage - Supply [Min] | 13 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SPI-6631 Series
Motor Driver DMOS Logic 16-HSOP
