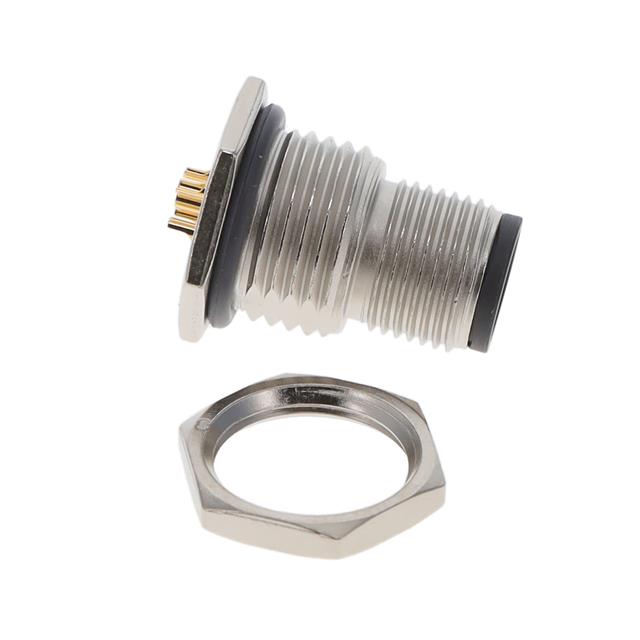

HMC-05PMMS-SF8001

Active

Amphenol LTW

NMEA 2000, MICRO, 4A, 05 PINS, R

Search across all available documentation for this part.

Active

Amphenol LTW

NMEA 2000, MICRO, 4A, 05 PINS, R

Technical Specifications

Parameters and characteristics for this part

Specification	HMC-05PMMS-SF8001

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-5
Shielding	Unshielded
Voltage Rating	60 VDC

Part	Material Flammability Rating	Shell Material	Color	Voltage Rating	Shell Finish	Connector Type	Shielding	Insert Material	Primary Material	Orientation	Ingress Protection	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Contact Finish - Mating	Current Rating (Amps)	Contact Material
Amphenol LTW HMC-05PMMS-SF8001	UL94 V-0	Zinc Alloy	Silver	60 VDC	Nickel	Male Pins Receptacle	Unshielded	Polyamide (PA) Nylon Glass Filled	Metal	Keyed	IP68 - Dust Tight Waterproof	M12-5	85 °C	-40 °C	Bulkhead - Front Side Nut	Gold	4 A	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder Cup
