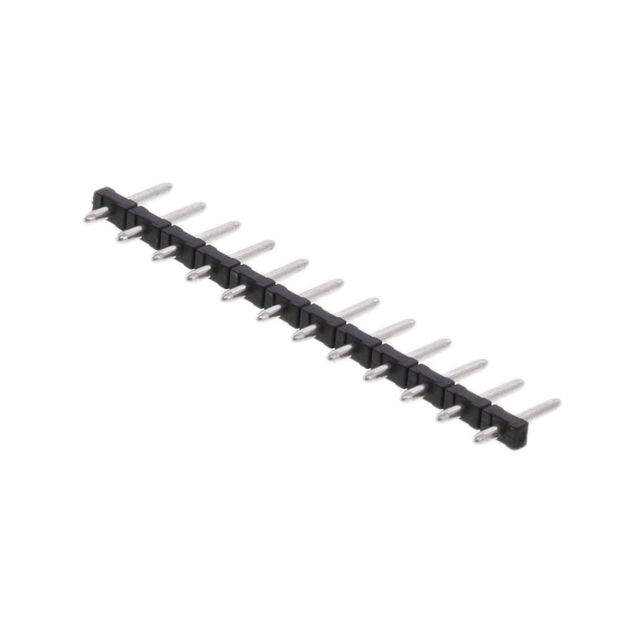

OSTOP120000

Active

On Shore Technology Inc.

TERM BLOCK HDR 12POS VERT 5MM

Search across all available documentation for this part.

Active

On Shore Technology Inc.

TERM BLOCK HDR 12POS VERT 5MM

Technical Specifications

Parameters and characteristics for this part

Part	Contact Tail Length	Contact Tail Length	Type	Contact Mating Finish	Mounting Type	Number of Levels	Voltage - UL	Housing Material	Positions Per Level	Pitch [x]	Pitch [x]	Header Orientation	Insulation Height	Insulation Height	Number of Positions	Insulation Height [z]	Insulation Height [z]
On Shore Technology Inc. OSTOP120000	3.5 mm	0.138 in	Header Male Pins Unshrouded	Tin	Solder	1	300 V	Brass	12	5 mm	0.197 in	Vertical	3.5 mm	0.138 in	12
On Shore Technology Inc. OSTOP120F00	8.8 mm	0.346 in	Header Male Pins Unshrouded	Tin	Solder	1	300 V	Brass	12	5 mm	0.197 in	90° Right Angle			12	0.346 in	8.8 mm
On Shore Technology Inc. OSTOP120100	4.29 mm	0.169 in	Header Male Pins Unshrouded	Tin	Solder	1	300 V	Brass	12	5 mm	0.197 in	Vertical	2 mm	0.079 in	12
On Shore Technology Inc. OSTOP120200	3.5 mm	0.138 in	Header Male Pins Unshrouded	Tin	Solder	1	300 V	Brass	12	5 mm	0.197 in	Vertical	3.5 mm	0.138 in	12
On Shore Technology Inc. OSTOP122B01	3.5 mm	0.138 in	Header Male Pins Unshrouded	Tin	Solder	1	150 V	Brass	12	3.5 mm	0.138 in	Vertical	3.5 mm	0.138 in	12
On Shore Technology Inc. OSTOP122200	3.5 mm	0.138 in	Header Male Pins Unshrouded	Tin	Solder	1	300 V	Brass	12	3.5 mm	0.138 in	Vertical	3.5 mm	0.138 in	12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.64

General part information

12 Position Terminal Block Header, Male Pins, Unshrouded 0.197" (5.00mm) Vertical Solder
