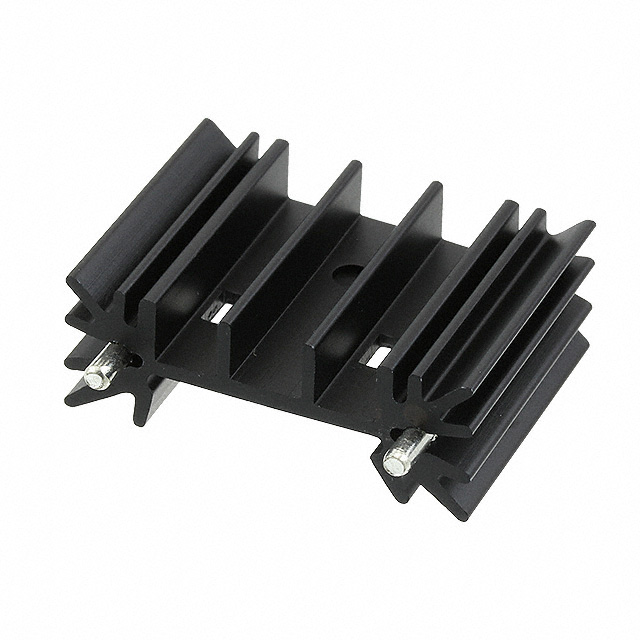

667-10ABPPE

Active

Wakefield-Vette

HEATSINK TO-220 W/PINS

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK TO-220 W/PINS

Technical Specifications

Parameters and characteristics for this part

Specification	667-10ABPPE

Attachment Method	PC Pin, Bolt On
Fin Height	1 in
Fin Height	25.4 mm
Length	0.5 in
Length	12.7 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	6 W
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	5.8 °C/W
Type	Board Level, Vertical
Width	34.93 mm
Width	1.375 "

Part	Type	Package Cooled	Power Dissipation @ Temperature Rise	Length	Length	Material	Material Finish	Shape	Thermal Resistance @ Forced Air Flow	Width	Width	Fin Height	Fin Height	Attachment Method
Wakefield-Vette 667-10ABPPE	Board Level Vertical	TO-220	6 W	0.5 in	12.7 mm	Aluminum	Black Anodized	Rectangular Fins	5.8 °C/W	34.93 mm	1.375 "	1 in	25.4 mm	Bolt On PC Pin
Wakefield-Vette 667-10ABSPE	Board Level Vertical	TO-220	6 W	0.5 in	12.7 mm	Aluminum	Black Anodized	Rectangular Fins	5.8 °C/W	34.93 mm	1.375 "	1 in	25.4 mm	Bolt On PC Pin
Wakefield-Vette 667-10ABSP	Board Level Vertical	TO-220	6 W	0.5 in	12.7 mm	Aluminum	Black Anodized	Rectangular Fins	5.8 °C/W	34.93 mm	1.375 "	1 in	25.4 mm	Bolt On PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-220 Aluminum 6.0W @ 76°C Board Level, Vertical
