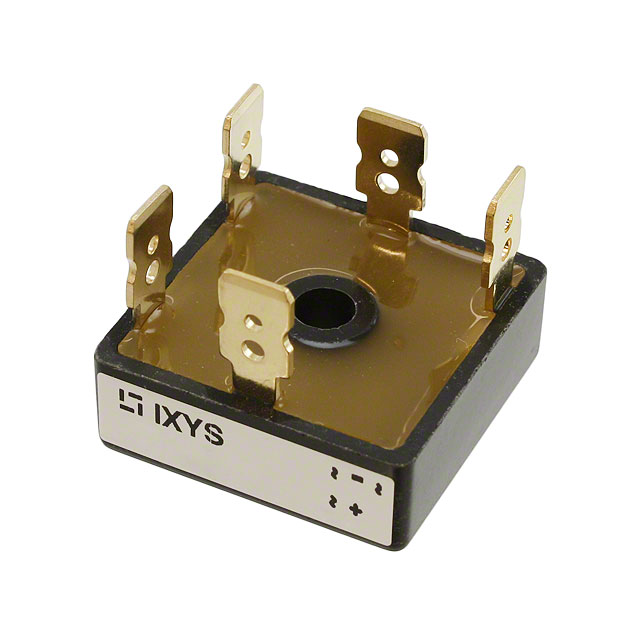

VUO25-14NO8

Active

IXYS

BRIDGE RECT 3P 1.4KV 25A PWS-E1

Search across all available documentation for this part.

Active

IXYS

BRIDGE RECT 3P 1.4KV 25A PWS-E1

Technical Specifications

Parameters and characteristics for this part

Specification	VUO25-14NO8

Current - Average Rectified (Io)	25 A
Current - Reverse Leakage @ Vr	300 µA
Diode Type	Three Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	PWS-E
Supplier Device Package	PWS-E
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	2.2 V
Voltage - Peak Reverse (Max) [Max]	1.4 kV

Part	Current - Reverse Leakage @ Vr	Package / Case	Voltage - Forward (Vf) (Max) @ If	Operating Temperature [Max]	Operating Temperature [Min]	Diode Type	Mounting Type	Supplier Device Package	Technology	Voltage - Peak Reverse (Max) [Max]	Current - Average Rectified (Io)	Voltage - Peak Reverse (Max)
IXYS VUO25-18NO8	300 µA	PWS-E	2.2 V	150 °C	-40 °C	Three Phase	Chassis Mount	PWS-E	Standard	1.8 kV	25 A
IXYS VUO25-14NO8	300 µA	PWS-E	2.2 V	150 °C	-40 °C	Three Phase	Chassis Mount	PWS-E	Standard	1.4 kV	25 A
IXYS VUO25-16NO8	300 µA	PWS-E	2.2 V	150 °C	-40 °C	Three Phase	Chassis Mount	PWS-E	Standard		25 A	1.6 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 10.76

General part information

Bridge Rectifier Three Phase Standard 1.4 kV Chassis Mount PWS-E
