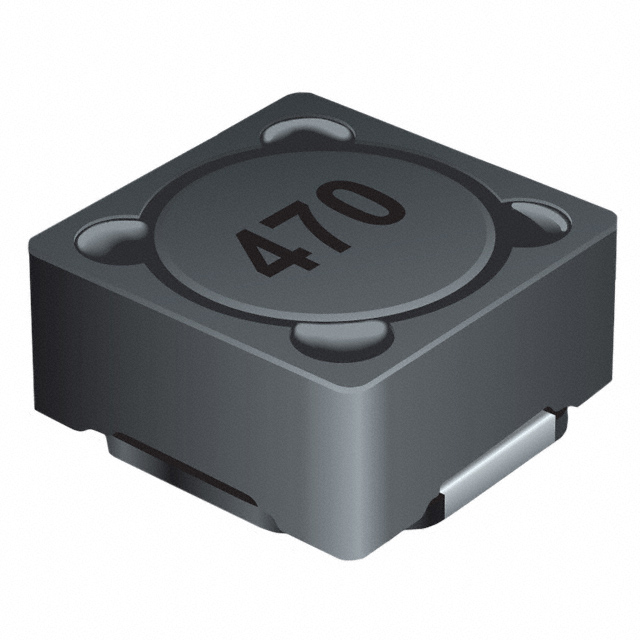

SRR1260A-390M

Active

Bourns Inc.

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SRR1260A SERIES, 39 H, 20%, SHIELDED, 0.07 OHM, 2.8 A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

SRR1260A-390M

Active

Bourns Inc.

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SRR1260A SERIES, 39 H, 20%, SHIELDED, 0.07 OHM, 2.8 A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRR1260A-390M

Current - Saturation (Isat)	2.7 A
Current Rating (Amps)	2.8 A
DC Resistance (DCR) [Max]	70 mOhm
Frequency - Self Resonant	10.4 MHz
Height - Seated (Max) [Max] [z]	0.256 in
Height - Seated (Max) [Max] [z]	6.5 mm
Inductance	39 µH
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	2.52 MHz, 22
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	0.492 in
Size / Dimension [x]	12.5 mm
Size / Dimension [y]	0.492 "
Size / Dimension [y]	12.5 mm
Tolerance	20 %
Type	Wirewound, Drum Core

SRR1260A Series

Part	Current - Saturation (Isat)	Shielding	Inductance	Q @ Freq	Frequency - Self Resonant	Package / Case	Tolerance	Ratings	Current Rating (Amps)	Material - Core	Mounting Type	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) [Max]	DC Resistance (DCR)	Inductance Frequency - Test
Bourns Inc. SRR1260A-330M	2.8 A	Shielded	33 µH	2.52 MHz 27	9.97 MHz	Nonstandard	20 %	AEC-Q200	3 A	Ferrite	Surface Mount	Drum Core Wirewound	0.256 in	6.5 mm	0.492 in	0.492 "	12.5 mm	12.5 mm	125 °C	-40 °C
Bourns Inc. SRR1260A-390M	2.7 A	Shielded	39 µH	2.52 MHz 22	10.4 MHz	Nonstandard	20 %	AEC-Q200	2.8 A	Ferrite	Surface Mount	Drum Core Wirewound	0.256 in	6.5 mm	0.492 in	0.492 "	12.5 mm	12.5 mm	125 °C	-40 °C	70 mOhm
Bourns Inc. SRR1260A-101M	1.7 A	Shielded	100 µH	26 796 kHz	6.07 MHz	Nonstandard	20 %	AEC-Q200	1.7 A	Ferrite	Surface Mount	Drum Core Wirewound	0.256 in	6.5 mm	0.492 in	0.492 "	12.5 mm	12.5 mm	125 °C	-40 °C		180 mOhm
Bourns Inc. SRR1260A-221K	1.3 A	Shielded	220 µH	22 796 kHz	4.2 MHz	Nonstandard	10 %	AEC-Q200	1.38 A	Ferrite	Surface Mount	Drum Core Wirewound	0.256 in	6.5 mm	0.492 in	0.492 "	12.5 mm	12.5 mm	125 °C	-40 °C	380 mOhm
Bourns Inc. SRR1260A-8R2Y	5.8 A	Shielded	8.2 µH	7.96 MHz 18	24 MHz	Nonstandard	30 %	AEC-Q200	5.7 A	Ferrite	Surface Mount	Drum Core Wirewound	0.256 in	6.5 mm	0.492 in	0.492 "	12.5 mm	12.5 mm	125 °C	-40 °C	19.5 mOhm		100 kHz
Bourns Inc. SRR1260A-560M	2.2 A	Shielded	56 µH	2.52 MHz 24	7.92 MHz	Nonstandard	20 %	AEC-Q200		Ferrite	Surface Mount	Drum Core Wirewound	0.256 in	6.5 mm	0.492 in	0.492 "	12.5 mm	12.5 mm	125 °C	-40 °C		100 mOhm
Bourns Inc. SRR1260A-1R0Y	10 A	Shielded	1 µH	7.96 MHz 26	100 MHz	Nonstandard	30 %	AEC-Q200	9.4 A	Ferrite	Surface Mount	Drum Core Wirewound	0.256 in	6.5 mm	0.492 in	0.492 "	12.5 mm	12.5 mm	125 °C	-40 °C	7.8 mOhm		100 kHz
Bourns Inc. SRR1260A-331K	1.1 A	Shielded	330 µH	22 796 kHz		Nonstandard	10 %	AEC-Q200	1.15 A	Ferrite	Surface Mount	Drum Core Wirewound	0.256 in	6.5 mm	0.492 in	0.492 "	12.5 mm	12.5 mm	125 °C	-40 °C	580 mOhm
Bourns Inc. SRR1260A-820M	1.9 A	Shielded	82 µH	2.52 MHz 25	6.85 MHz	Nonstandard	20 %	AEC-Q200	1.95 A	Ferrite	Surface Mount	Drum Core Wirewound	0.256 in	6.5 mm	0.492 in	0.492 "	12.5 mm	12.5 mm	125 °C	-40 °C	145 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.30
	Digi-Reel®	1	$ 1.30
	Tape & Reel (TR)	2400	$ 0.60
Newark	Each (Supplied on Cut Tape)	1	$ 1.59
		10	$ 1.49
		25	$ 1.30
		50	$ 1.12
		100	$ 0.94

Description

General part information

SRR1260A Series

39 µH Shielded Drum Core, Wirewound Inductor 2.8 A 70mOhm Max Nonstandard

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
