H2122-01

Active

Harwin Inc.

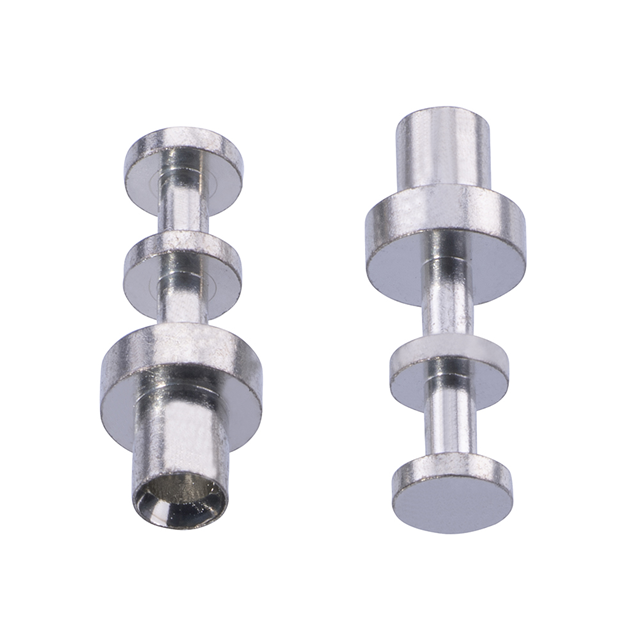

VERTICAL THROUGHBOARD TURRET LUG, TRIPLE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

VERTICAL THROUGHBOARD TURRET LUG, TRIPLE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	H2122-01

Board Thickness	0.094 in
Board Thickness	2.39 mm
Contact Finish	Tin
Contact Material	Brass Alloy
Diameter - Turret Head [diameter]	0.14 in, 0.137 in
Diameter - Turret Head [diameter]	3.48 mm, 3.56 mm
Flange Diameter [diameter]	0.187 in
Flange Diameter [diameter]	4.75 mm
Insulation	Non-Insulated
Length - Above Board	9.53 mm
Length - Above Board	0.375 in
Length - Below Flange [Max] [x]	3.3 mm
Length - Below Flange [Max] [x]	0.13 in
Length - Below Flange [Min] [x]	3.18 mm
Length - Below Flange [Min] [x]	0.125 in
Length - Overall [x]	0.5 in
Length - Overall [x]	12.7 mm
Mounting Hole Diameter [Max] [diameter]	0.115 in
Mounting Hole Diameter [Max] [diameter]	2.93 mm
Mounting Hole Diameter [Min] [diameter]	0.112 in
Mounting Hole Diameter [Min] [diameter]	2.85 mm
Mounting Type	Through Hole
Number of Turrets	Double
Staking Side ID [Max] [diameter]	0.076 in
Staking Side ID [Max] [diameter]	1.93 mm
Staking Side ID [Min] [diameter]	0.073 in
Staking Side ID [Min] [diameter]	1.85 mm
Terminal Type	Single End
Termination	Swage

Part	Insulation	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Terminal Type	Termination	Mounting Hole Diameter [Max] [diameter]	Mounting Hole Diameter [Max] [diameter]	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Min] [diameter]	Diameter - Turret Head [diameter]	Diameter - Turret Head [diameter]	Board Thickness	Board Thickness	Mounting Type	Length - Below Flange [Max] [x]	Length - Below Flange [Min] [x]	Length - Below Flange [Min] [x]	Length - Below Flange [Max] [x]	Number of Turrets	Contact Material	Length - Above Board	Length - Above Board	Length - Overall [x]	Length - Overall [x]	Staking Side ID [Max] [diameter]	Staking Side ID [Min] [diameter]	Staking Side ID [Min] [diameter]	Staking Side ID [Max] [diameter]
Harwin Inc. H2122-01	Non-Insulated	Tin	0.187 in	4.75 mm	Single End	Swage	0.115 in	2.93 mm	0.112 in	2.85 mm	0.137 in 0.14 in	3.48 mm 3.56 mm	0.094 in	2.39 mm	Through Hole	3.3 mm	3.18 mm	0.125 in	0.13 in	Double	Brass Alloy	9.53 mm	0.375 in	0.5 in	12.7 mm	0.076 in	0.073 in	1.85 mm	1.93 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Turret Connector Single End 0.375" (9.53mm) Tin
