C1188.21.01
ActivePrysmian Group

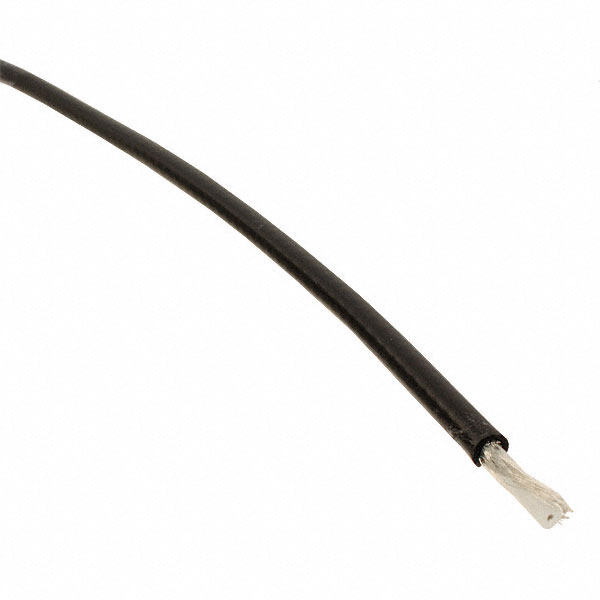

CABLE COAXIAL RG58A 20AWG 1000'
Deep-Dive with AI
Search across all available documentation for this part.
C1188.21.01
ActivePrysmian Group
CABLE COAXIAL RG58A 20AWG 1000'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C1188.21.01 |
|---|---|
| Cable Group | RG-58A |
| Cable Type | Coaxial |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 19 Strands |
| Conductor Strand [custom] | 32 AWG |
| Dielectric Diameter [diameter] | 2.9 mm |
| Dielectric Diameter [diameter] | 0.114 in |
| Impedance | 50 Ohms |
| Jacket (Insulation) Diameter [diameter] | 0.195 in |
| Jacket (Insulation) Diameter [diameter] | 4.95 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 304.8 m |
| Length | 1000 ft |
| Shield Coverage | 95 % |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| Usage | Network, RF Signal |
| VoP, Velocity of Propagation | 78 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 463.88 | |
| 2 | $ 441.09 | |||
| 3 | $ 428.20 | |||
| 5 | $ 412.40 | |||
| 7 | $ 402.25 | |||
| 10 | $ 391.72 | |||
| 25 | $ 365.67 | |||
Description
General part information
C1188 Series
Coaxial Cable 20 AWG (0.62mm²) RG-58A 1000.0' (304.80m) 50 Ohms
