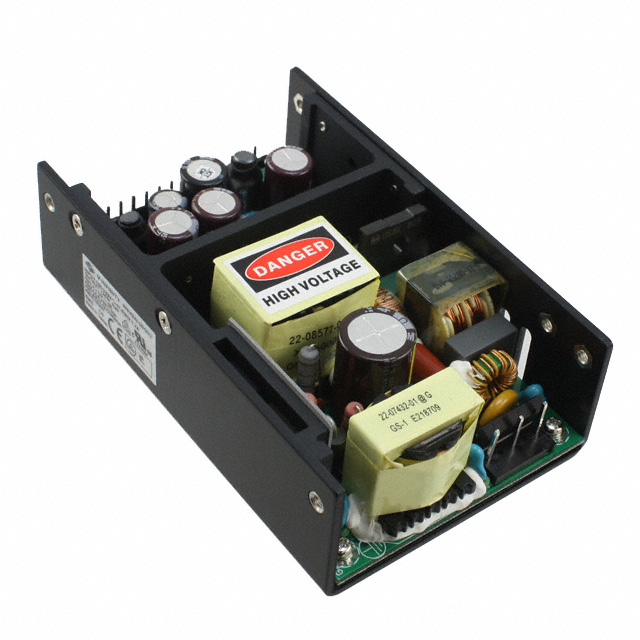

VSUU-120-T125B

CUI Inc.

AC/DC CONVERTER 5V 12V 5V 120W

Deep-Dive with AI

Search across all available documentation for this part.

VSUU-120-T125B

CUI Inc.

AC/DC CONVERTER 5V 12V 5V 120W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VSUU-120-T125B

Applications	ITE (Commercial)
Approval Agency	IEC, EN, TUV, UL, CB Scheme, SIQ
Current - Output 1	15 A
Current - Output 2	4 A
Current - Output 3	800 mA
Efficiency	80 %
Features	PFC, Universal Input, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1.28 in
Size / Dimension [z]	32.5 mm
Standard Number	55024, 55032 Class B, 61000-3-3, 61000-3-2, 60950-1
Type	Open Frame
Voltage - Input [Max]	370 VDC, 260 VAC
Voltage - Input [Min]	90 VAC, 130 VDC
Voltage - Isolation	4.242 kV
Voltage - Output 1	5 V
Voltage - Output 2	12 V
Voltage - Output 3	5 V

VSUU-120 Series

Part	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Type	Operating Temperature [Max]	Current - Output 1	Approval Agency	Applications	Standard Number	Voltage - Output 1	Current - Output 2 [custom]	Efficiency	Features	Voltage - Output 2	Voltage - Isolation	Current - Output 2	Current - Output 3	Voltage - Output 3
CUI Inc. VSUU-120-D305	260 VAC 370 VDC	90 VAC 130 VDC	2	Chassis Mount	3 "	127 mm	5 in	1.28 in	76.2 mm	32.5 mm	Open Frame	70 °C	15 A	CB Scheme EN IEC SIQ TUV UL	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	3.3 V	6 A	80 %	DC Input Capable PFC Universal Input	5 V	4.242 kV
CUI Inc. VSUU-120-T510A	260 VAC 370 VDC	90 VAC 130 VDC	3	Chassis Mount	3 "	127 mm	5 in	1.28 in	76.2 mm	32.5 mm	Open Frame	70 °C	15 A	CB Scheme EN IEC SIQ TUV UL	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	5 V	6 A	80 %	DC Input Capable PFC Universal Input	10 V	4.242 kV
CUI Inc. VSUU-120-D524B	260 VAC 370 VDC	90 VAC 130 VDC	2	Chassis Mount	3 "	127 mm	5 in	1.28 in	76.2 mm	32.5 mm	Open Frame	70 °C	15 A	CB Scheme EN IEC SIQ TUV UL	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	5 V		80 %	DC Input Capable PFC Universal Input	-24 V	4.242 kV	2 A
CUI Inc. VSUU-120-T515A	260 VAC 370 VDC	90 VAC 130 VDC	3	Chassis Mount	3 "	127 mm	5 in	1.28 in	76.2 mm	32.5 mm	Open Frame	70 °C	15 A	CB Scheme EN IEC SIQ TUV UL	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	5 V	6 A	80 %	DC Input Capable PFC Universal Input	15 V	4.242 kV		800 mA	-15 V
CUI Inc. VSUU-120-D285	260 VAC 370 VDC	90 VAC 130 VDC	2	Chassis Mount	3 "	127 mm	5 in	1.28 in	76.2 mm	32.5 mm	Open Frame	70 °C	3.92 A	CB Scheme EN IEC SIQ TUV UL	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	28 V		80 %	DC Input Capable PFC Universal Input	5 V	4.242 kV	2 A
CUI Inc. VSUU-120-T125B	260 VAC 370 VDC	90 VAC 130 VDC	3	Chassis Mount	3 "	127 mm	5 in	1.28 in	76.2 mm	32.5 mm	Open Frame	70 °C	15 A	CB Scheme EN IEC SIQ TUV UL	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	5 V		80 %	DC Input Capable PFC Universal Input	12 V	4.242 kV	4 A	800 mA	5 V
CUI Inc. VSUU-120-36	260 VAC 370 VDC	90 VAC 130 VDC	1	Chassis Mount	3 "	127 mm	5 in	1.54 "	81.4 mm	39.1 mm	Open Frame	70 °C	4 A	CB Scheme EN IEC SIQ TUV UL	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	36 V		80 %			4.242 kV
CUI Inc. VSUU-120-24	260 VAC 370 VDC	90 VAC 130 VDC	1	Chassis Mount	3 "	127 mm	5 in	1.54 "	81.4 mm	39.1 mm	Open Frame	70 °C	6 A	CB Scheme EN IEC SIQ TUV UL	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	24 V		80 %			4.242 kV
CUI Inc. VSUU-120-T305A	260 VAC 370 VDC	90 VAC 130 VDC	3	Chassis Mount	3 "	127 mm	5 in	1.28 in	76.2 mm	32.5 mm	Open Frame	70 °C	15 A	CB Scheme EN IEC SIQ TUV UL	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	5 V		80 %	DC Input Capable PFC Universal Input	24 V	4.242 kV	3.5 A	800 mA	-12 V
CUI Inc. VSUU-120-T524B	260 VAC 370 VDC	90 VAC 130 VDC	3	Chassis Mount	3 "	127 mm	5 in	1.28 in	76.2 mm	32.5 mm	Open Frame	70 °C	15 A	CB Scheme EN IEC SIQ TUV UL	ITE (Commercial)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	5 V		80 %	DC Input Capable PFC Universal Input	24 V	4.242 kV	3.5 A	800 mA	24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	60	$ 104.83

Description

General part information

VSUU-120 Series

Open Frame AC DC Converters 3 Output 5V 12V 5V 90 ~ 260 VAC, 130 ~ 370 VDC Input
