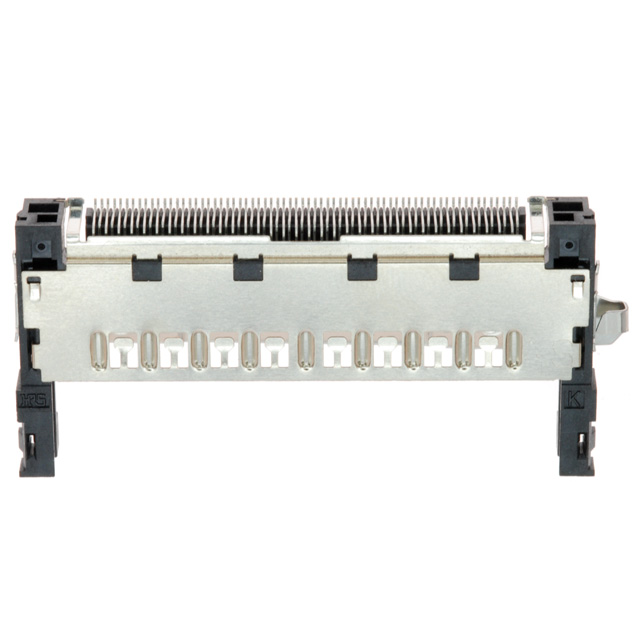

IC11SA-PL-SF-EJR(71)

LTB

Hirose Electric USA, Inc.

CONN PCMCIA CARD PUSH-PUSH R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IC11SA-PL-SF-EJR(71)

LTB

Hirose Electric USA, Inc.

CONN PCMCIA CARD PUSH-PUSH R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IC11SA-PL-SF-EJR(71)

Card Type	PCMCIA - CardBus, Type II, Type I, Type III
Connector Type	Connector and Ejector
Contact Finish	Gold
Ejector Side	Right
Features	Card Guide, Board Guide
Height Above Board	0.307 in
Height Above Board	7.8 mm
Insertion, Removal Method	Push Out, Push In
Mounting Feature	Normal, Standard - Top
Mounting Type	Surface Mount, Right Angle
Number of Positions	68

IC11S Series

Part	Contact Finish	Mounting Feature	Features	Number of Positions	Card Type	Mounting Type	Ejector Side	Connector Type	Insertion, Removal Method	Height Above Board	Height Above Board	Accessory Type
Hirose Electric USA, Inc. IC11S-PLR-SF-EJL(71)	Gold	Reverse - Bottom	Board Guide Card Guide	68	PCMCIA - CardBus Type I Type II Type III	Surface Mount Right Angle	Left	Connector and Ejector	Push In Push Out
Hirose Electric USA, Inc. IC11SA-68PL-1.27SF-EJR	Gold	Normal Standard - Top	Board Guide Card Guide	68	PCMCIA - CardBus Type I Type II Type III	Surface Mount Right Angle	Right	Connector and Ejector	Push In Push Out	0.307 in	7.8 mm
Hirose Electric USA, Inc. IC11SA-BD-FEJL		Normal Standard - Top			PCMCIA - CardBus Type I Type II Type III	Snap-In	Left	Ejector	Push In Push Out
Hirose Electric USA, Inc. IC11SA-BD-L												Card Guide
Hirose Electric USA, Inc. IC11S-68PL-1.27SF-EJL	Gold	Normal Standard - Top	Board Guide Card Guide	68	PCMCIA - CardBus Type I Type II Type III	Surface Mount Right Angle	Left	Connector and Ejector	Push In Push Out
Hirose Electric USA, Inc. IC11S-BD-EJL		Normal Standard - Top			PCMCIA - CardBus Type I Type II Type III	Snap-In	Left	Ejector	Push In Push Out
Hirose Electric USA, Inc. IC11S-PL-SF-EJL(71)	Gold	Normal Standard - Top	Board Guide Card Guide	68	PCMCIA - CardBus Type I Type II Type III	Surface Mount Right Angle	Left	Connector and Ejector	Push In Push Out
Hirose Electric USA, Inc. IC11SA-BUR-PEJL(71)		Reverse - Bottom	Pop Up Ejector		PCMCIA - CardBus Type I Type II Type III	Snap-In	Left	Ejector	Push In Push Out
Hirose Electric USA, Inc. IC11SA-PL-SF-EJR(71)	Gold	Normal Standard - Top	Board Guide Card Guide	68	PCMCIA - CardBus Type I Type II Type III	Surface Mount Right Angle	Right	Connector and Ejector	Push In Push Out	0.307 in	7.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.91
Newark	Each	1	$ 9.60
		240	$ 8.46

Description

General part information

IC11S Series

68 Position Card Connector PCMCIA - CardBus, Type I, II, III Surface Mount, Right Angle Gold
