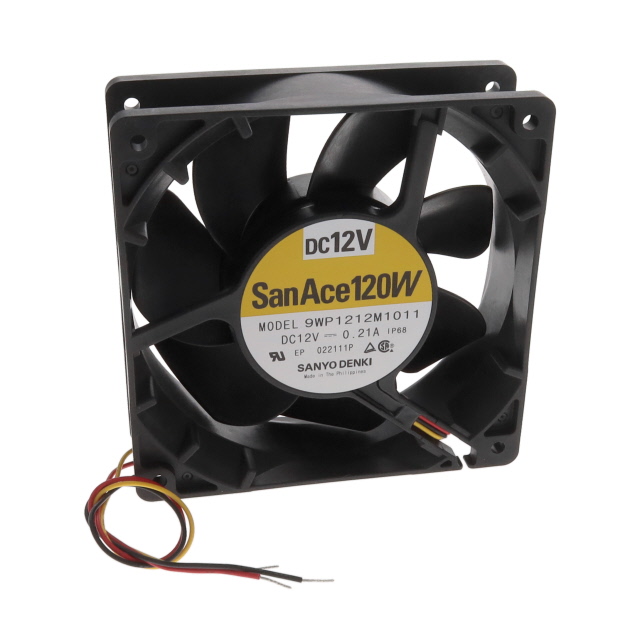

9WP1212M1011

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHandling Instructions for Fan Motors Rotor Balancing +1

9WP1212M1011

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 12VDC WIRE

Deep-Dive with AI

DocumentsHandling Instructions for Fan Motors Rotor Balancing +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9WP1212M1011

Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Ingress Protection	IP68 - Dust Tight, Waterproof
Material - Blade	Plastic
Material - Frame	Plastic
Power (Watts)	2.52 W
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Width [y]	38 mm

9WP1212 Series

Part	Approval Agency	Features	Lifetime @ Temp.	Material - Frame	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Weight [custom]	Weight [custom]	Termination	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	RPM	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Noise	Current Rating (Amps)	Power (Watts)	Fan Type	Ingress Protection	Width [y]	Bearing Type	Air Flow	Air Flow
Sanyo Denki America Inc. 9WP1212H101	CSA TUV UL	Speed Sensor (Tach)	40000 Hrs	Plastic	-20 °C	70 °C	-20 C	70 °C	70.5 Pa	0.283 in H2O	360.15 g	0.794 lb	3 Wire Leads	12 VDC	120 mm	120 mm	2600 RPM	7 V	13.8 VDC	Plastic	39 dB(A)	0.38 A	4.56 W	Tubeaxial	IP68 - Dust Tight Waterproof	38 mm	Ball
Sanyo Denki America Inc. 9WP1212M1011		Locked Rotor Protection Speed Sensor (Tach)		Plastic									3 Wire Leads	12 VDC	120 mm	120 mm				Plastic			2.52 W	Tubeaxial	IP68 - Dust Tight Waterproof	38 mm	Ball
Sanyo Denki America Inc. 9WP1212L1011	CSA TUV UL	Speed Sensor (Tach)	40000 Hrs	Plastic	-20 °C	70 °C	-20 C	70 °C	23.4 Pa	0.094 in H2O	360.15 g	0.794 lb	3 Wire Leads	12 VDC	120 mm	120 mm	1500 RPM	10.2 VDC	13.8 VDC	Plastic	26 dB	140 mA	1.68 W	Tubeaxial	IP68 - Dust Tight Waterproof	38 mm	Ball	1.6 mł/min	57.2 CFM
Sanyo Denki America Inc. 9WP1212L101	CSA TUV UL	Speed Sensor (Tach)	40000 Hrs	Plastic	-20 °C	70 °C	-20 C	70 °C	23.4 Pa	0.094 in H2O	360.15 g	0.794 lb	3 Wire Leads	12 VDC	120 mm	120 mm	1500 RPM	10.2 VDC	13.8 VDC	Plastic	26 dB	140 mA	1.68 W	Tubeaxial	IP68 - Dust Tight Waterproof	38 mm	Ball	1.6 mł/min	57.2 CFM
Sanyo Denki America Inc. 9WP1212M101		Locked Rotor Protection Speed Sensor (Tach)		Plastic									3 Wire Leads	12 VDC	120 mm	120 mm				Plastic			2.52 W	Tubeaxial	IP68 - Dust Tight Waterproof	38 mm	Ball
Sanyo Denki America Inc. 9WP1212M1021				Plastic									2 Wire Leads	12 VDC	120 mm	120 mm				Plastic			2.52 W	Tubeaxial	IP68 - Dust Tight Waterproof	38 mm	Ball

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 46.19
		21	$ 42.19
		42	$ 40.59
		63	$ 37.92
		105	$ 34.98
		252	$ 34.44
