H2UN3P1D2V0100
ActiveUnictron Technologies Corporation

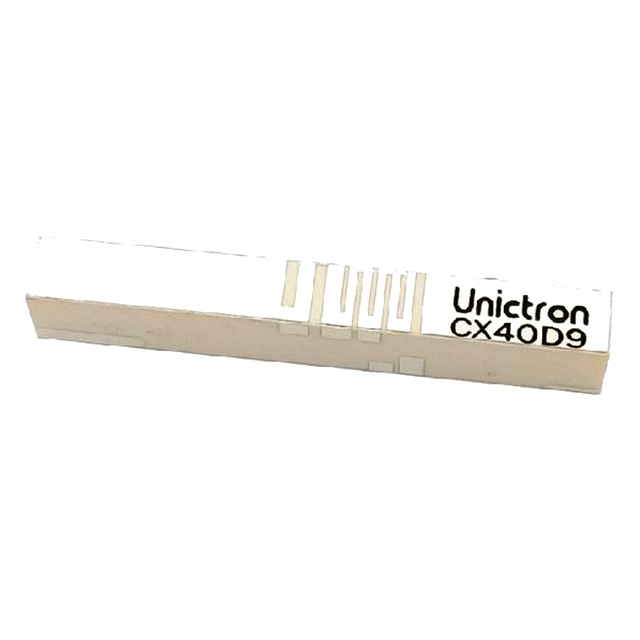

UNICTRON CX40D9 - 5G FR1 CHIP AN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H2UN3P1D2V0100
ActiveUnictron Technologies Corporation
UNICTRON CX40D9 - 5G FR1 CHIP AN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H2UN3P1D2V0100 |
|---|---|
| Antenna Type | Chip |
| Applications | 5G, 4G |
| Frequency (Center/Band) | 5.5375 GHz, 2.495 GHz, 788.5 MHz, 4.7 GHz, 3.75 GHz, 1.94 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 2.17 GHz, 5 GHz, 4.2 GHz, 5.925 GHz, 960 MHz, 2.69 GHz |
| Frequency Range [Min] | 3.3 GHz, 5.15 GHz, 2.3 GHz, 617 MHz, 1.71 GHz, 4.4 GHz |
| Gain | 2.6 dBi, 3 dBi, 3.5 dBi, 2.7 dBi, 2.5 dBi, 1.5 dBic |
| Height (Max) [Max] | 6 mm |
| Height (Max) [Max] | 0.236 in |
| Mounting Type | Surface Mount |
| Number of Bands | 6 |
| Power - Max [Max] | 2 W |
| RF Family/Standard | Cellular |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 12.83 | |
| 10 | $ 9.06 | |||
| 25 | $ 8.09 | |||
| 100 | $ 7.00 | |||
| 250 | $ 6.48 | |||
| Digi-Reel® | 1 | $ 12.83 | ||
| 10 | $ 9.06 | |||
| 25 | $ 8.09 | |||
| 100 | $ 7.00 | |||
| 250 | $ 6.48 | |||
| Tape & Reel (TR) | 600 | $ 5.81 | ||
| 1200 | $ 5.65 | |||
Description
General part information
H2UN3 Series
RF ANTENNA 4G, 5G Chip Solder Surface Mount
