Technical Specifications
Parameters and characteristics for this part
| Specification | WSTM2512QLR022FYR |
|---|---|
| Features | High Voltage, Current Sense |
| Height - Seated (Max) [Max] [z] | 0.85 mm |
| Height - Seated (Max) [Max] [z] | 0.033 " |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 6432 Metric |
| Package / Case | 2512 |
| Power (Watts) | 2 W |
| Resistance | 22 mOhms |
| Supplier Device Package | 2512 |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.59 | |
| 10 | $ 0.47 | |||
| 25 | $ 0.42 | |||
| 50 | $ 0.38 | |||
| 100 | $ 0.31 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.24 | |||
| 1000 | $ 0.19 | |||
| Digi-Reel® | 1 | $ 0.59 | ||
| 10 | $ 0.47 | |||
| 25 | $ 0.42 | |||
| 50 | $ 0.38 | |||
| 100 | $ 0.31 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.24 | |||
| 1000 | $ 0.19 | |||
| Tape & Reel (TR) | 4000 | $ 0.17 | ||
Description
General part information
WSTM2512QLR022F Series

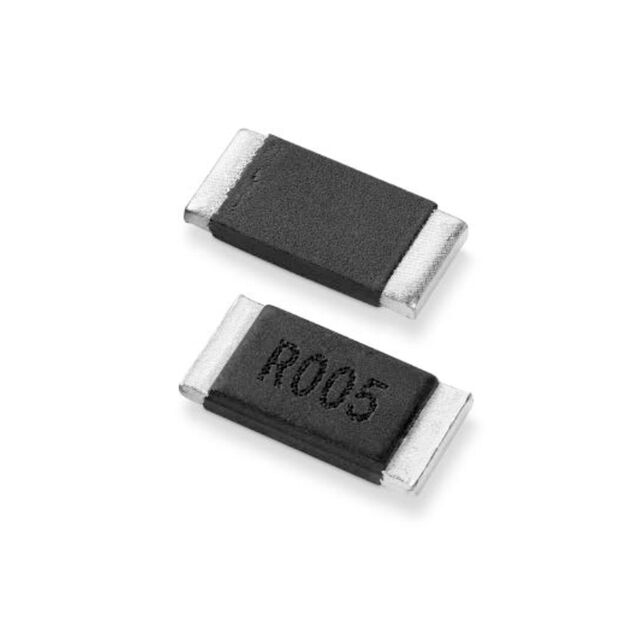

Littelfuse WSTM Series low ohm current sense resistor is designed with long term stability in mind. This series is durable, excels at heat dissipation. The small package is optimal for most applications.
