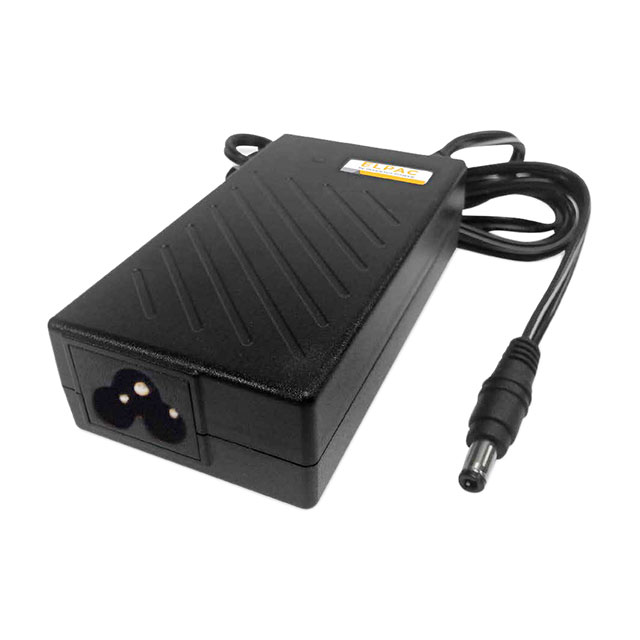

FWA020012A-10A
ActiveInventus Power
AC/DC DESKTOP ADAPTER 12V 20W
Deep-Dive with AI
Search across all available documentation for this part.
FWA020012A-10A
ActiveInventus Power
AC/DC DESKTOP ADAPTER 12V 20W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FWA020012A-10A |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, TUV, GS, CE |
| Cord Length | 1.22 m |
| Cord Length | 48 in |
| Current - Output (Max) [Max] | 1.67 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C6 |
| Input Type | Cord |
| No Load Power Consumption | 300 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 20 W |
| Region Utilized | International |
| Size / Dimension [x] | 87.7 mm |
| Size / Dimension [x] | 3.45 in |
| Size / Dimension [y] | 2.04 in |
| Size / Dimension [y] | 51.8 mm |
| Size / Dimension [z] | 33 mm |
| Size / Dimension [z] | 1.3 " |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 80 | $ 18.18 | |
Description
General part information
FWA020012 Series
12V 20 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
Documents
Technical documentation and resources
No documents available
