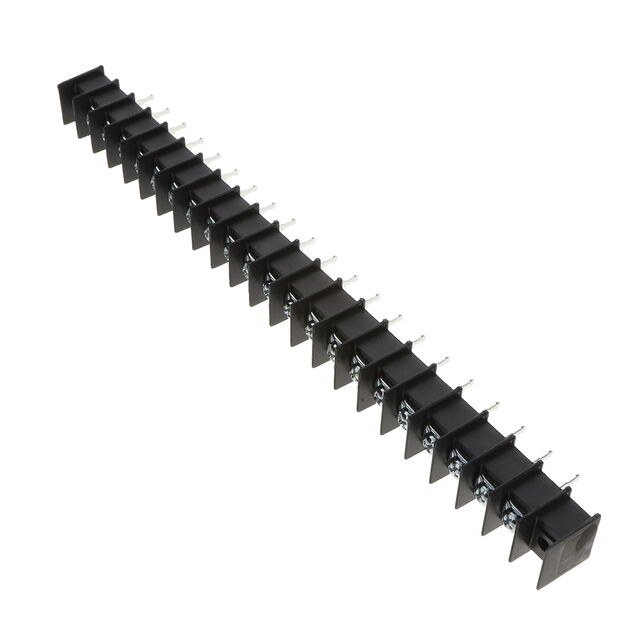

430201-21-0

Active

Curtis Industries

CONN BARRIER STRP 21CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Terminal Blocks Catalog

430201-21-0

Active

Curtis Industries

CONN BARRIER STRP 21CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet Terminal Blocks Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	430201-21-0

Barrier Type	2 Wall (Dual)
Bottom Termination	Solder Turret
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	21
Number of Rows	1
Number of Wire Entries	21
Operating Temperature	105 C
Pitch [x]	11.12 mm
Pitch [x]	0.438 in
Terminal Block Type	Barrier Block
Top Termination	Screws
Voltage Rating	600 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

430201 Series

Part	Pitch [x]	Pitch [x]	Number of Wire Entries	Number of Circuits	Wire Gauge [Min]	Wire Gauge [Max]	Material Flammability Rating	Mounting Type	Bottom Termination	Voltage Rating	Top Termination	Terminal Block Type	Material - Insulation	Number of Rows	Current Rating (Amps)	Operating Temperature	Barrier Type	Features	Number of Circuits [custom]
Curtis Industries 430201-02-0	11.12 mm	0.438 in	2	2	12 AWG	22 AWG	UL94 V-0	Chassis Panel	Solder Turret	600 V	Screws	Barrier Block	Polypropylene (PP)	1	20 A	105 C	2 Wall (Dual)	Flange
Curtis Industries 430201-21-0	11.12 mm	0.438 in	21	21	12 AWG	22 AWG	UL94 V-0	Chassis Panel	Solder Turret	600 V	Screws	Barrier Block	Polypropylene (PP)	1	20 A	105 C	2 Wall (Dual)	Flange
Curtis Industries 430201-25-0	11.12 mm	0.438 in	25	25	12 AWG	22 AWG	UL94 V-0	Chassis Panel	Solder Turret	600 V	Screws	Barrier Block	Polypropylene (PP)	1	20 A	105 C	2 Wall (Dual)	Flange
Curtis Industries 430201-09-0	11.12 mm	0.438 in	9		12 AWG	22 AWG	UL94 V-0	Chassis Panel	Solder Turret	600 V	Screws	Barrier Block	Polypropylene (PP)	1	20 A	105 C	2 Wall (Dual)	Flange
Curtis Industries 430201-24-0	11.12 mm	0.438 in		24	12 AWG	22 AWG	UL94 V-0	Chassis Panel	Solder Turret	600 V	Screws	Barrier Block	Polypropylene (PP)	1	20 A	105 C	2 Wall (Dual)	Flange
Curtis Industries 430201-13-0	11.12 mm	0.438 in	13	13	12 AWG	22 AWG	UL94 V-0	Chassis Panel	Solder Turret	600 V	Screws	Barrier Block	Polypropylene (PP)	1	20 A	105 C	2 Wall (Dual)	Flange
Curtis Industries 430201-04-0	11.12 mm	0.438 in	4	4	12 AWG	22 AWG	UL94 V-0	Chassis Panel	Solder Turret	600 V	Screws	Barrier Block	Polypropylene (PP)	1	20 A	105 C	2 Wall (Dual)	Flange
Curtis Industries 430201-07-0	11.12 mm	0.438 in	7	7	12 AWG	22 AWG	UL94 V-0	Chassis Panel	Solder Turret	600 V	Screws	Barrier Block	Polypropylene (PP)	1	20 A	105 C	2 Wall (Dual)	Flange
Curtis Industries 430201-08-0	11.12 mm	0.438 in	8		12 AWG	22 AWG	UL94 V-0	Chassis Panel	Solder Turret	600 V	Screws	Barrier Block	Polypropylene (PP)	1	20 A	105 C	2 Wall (Dual)	Flange	8
Curtis Industries 430201-26-0	11.12 mm	0.438 in	26	26	12 AWG	22 AWG	UL94 V-0	Chassis Panel	Solder Turret	600 V	Screws	Barrier Block	Polypropylene (PP)	1	20 A	105 C	2 Wall (Dual)	Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.93
		10	$ 13.14
		25	$ 12.39
		50	$ 11.79
		100	$ 11.57
		250	$ 10.08
		500	$ 9.70
		1000	$ 9.33

Description

General part information

430201 Series

21 Circuit 0.438" (11.12mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Terminal Blocks Catalog
