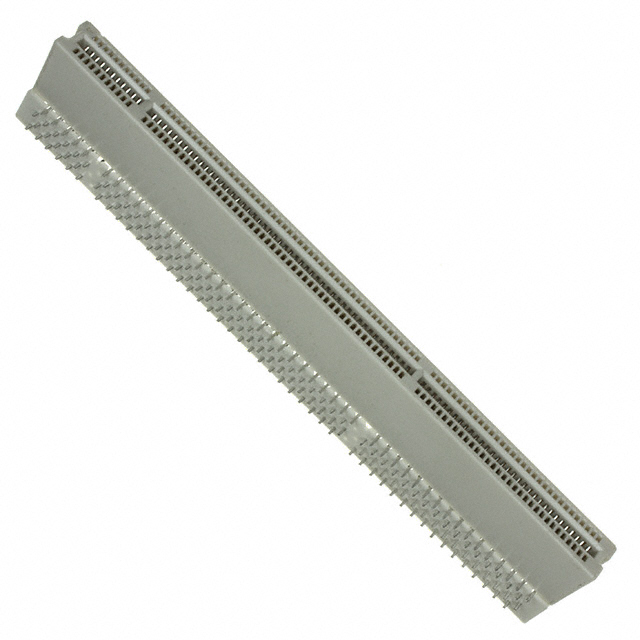

TRWB092DKAN-T329

Obsolete

Sullins Connector Solutions

CONN PCI CARDEDGE FML 184P 0.050

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TRWB092DKAN-T329

Obsolete

Sullins Connector Solutions

CONN PCI CARDEDGE FML 184P 0.050

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TRWB092DKAN-T329

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	PCI™
Color	White
Contact Finish	Gold
Contact Finish Thickness	0.127 µm
Contact Finish Thickness	5 µin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Thermoplastic, Glass Filled
Mounting Type	Through Hole, Right Angle
Number of Positions	184
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Read Out	Dual
Termination	Solder

TRWB092 Series

Part	Card Type	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Gender	Card Thickness	Card Thickness	Color	Pitch [x]	Pitch [x]	Termination	Contact Material	Number of Positions	Material - Insulation	Number of Rows	Mounting Type	Contact Type	Read Out	Features
Sullins Connector Solutions TRWB092DKHN-T330RC	PCI 5V 64 Bit	Gold	85 °C	-55 °C	0.127 µm	5 µin	Female	0.062 in	1.57 mm	White	0.05 in	1.27 mm	Solder	Brass	184	Polybutylene Terephthalate (PBT)	2	Through Hole	Cantilever	Dual
Sullins Connector Solutions TRWB092DKHN-T26RC	PCI 5V 64 Bit	Gold	85 °C	-55 °C	0.127 µm	5 µin	Female	0.062 in	1.57 mm	White	0.05 in	1.27 mm	Solder Staggered	Brass	184	Polybutylene Terephthalate (PBT)	2	Through Hole	Cantilever	Dual
Sullins Connector Solutions TRWB092DKAN-T329	PCI™	Gold	85 °C	-55 °C	0.127 µm	5 µin	Female	0.062 in	1.57 mm	White	0.05 in	1.27 mm	Solder	Copper Alloy	184	Thermoplastic Glass Filled	2	Through Hole Right Angle	Cantilever	Dual
Sullins Connector Solutions TRWB092DKHN-T20RC	PCI 3.3V 5V 32 Bit	Gold	85 °C	-55 °C	0.127 µm	5 µin	Female	0.062 in	1.57 mm	White	0.05 in	1.27 mm	Solder Staggered	Brass	184	Polybutylene Terephthalate (PBT)	2	Through Hole	Cantilever	Dual
Sullins Connector Solutions TRWB092DKAN-T250RC	PCI 5V 64 Bit	Gold	85 °C	-55 °C	0.127 µm	5 µin	Female	0.062 in	1.57 mm	White	0.05 in	1.27 mm	Solder	Copper Alloy	184	Polybutylene Terephthalate (PBT)	2	Through Hole Right Angle	Cantilever	Dual
Sullins Connector Solutions TRWB092DKAN-T329RC		Gold	85 °C	-55 °C	0.127 µm	5 µin	Female	0.062 in	1.57 mm	White	0.05 in	1.27 mm	Solder	Copper Alloy	184	Polybutylene Terephthalate (PBT)	2	Through Hole Right Angle	Cantilever	Dual
Sullins Connector Solutions TRWB092DKHN-T378	PCI 5V 64 Bit	Gold	85 °C	-55 °C	0.127 µm	5 µin	Female	0.062 in	1.57 mm	White	0.05 in	1.27 mm	Solder Staggered	Brass	184	Polybutylene Terephthalate (PBT)	2	Through Hole	Cantilever	Dual	Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

TRWB092 Series

184 Position Female Connector PCI™ Gold 0.050" (1.27mm) White
