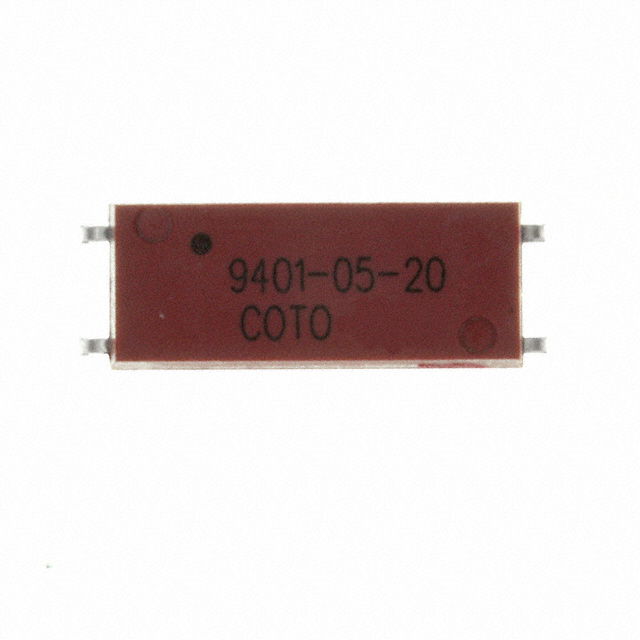

9401-05-20

Active

Coto Technology

RELAY REED SPST 500MA 5V

Search across all available documentation for this part.

Active

Coto Technology

RELAY REED SPST 500MA 5V

Technical Specifications

Parameters and characteristics for this part

Part	Must Release Voltage	Operate Time	Mounting Type	Coil Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Termination Style	Coil Resistance	Must Operate Voltage	Release Time	Switching Voltage	Coil Type	Contact Rating (Current)	Coil Current
Coto Technology 9401-05-20	0.4 VDC	0.4 ms	Surface Mount	5 VDC	85 °C	-20 C	SPST-NO (1 Form A)	J Lead	200 Ohms	3.75 VDC	0.2 ms	200 VDC 200 VAC	Non Latching	0.5 A
Coto Technology 9401-05-00	0.4 VDC	0.4 ms	Surface Mount	5 VDC	85 °C	-20 C	SPST-NO (1 Form A)	Gull Wing	200 Ohms	3.75 VDC	0.2 ms	200 VDC 200 VAC	Non Latching	0.5 A
Coto Technology 9401-05-00TR	0.4 VDC	0.4 ms	Surface Mount	5 VDC	85 °C	-20 C	SPST-NO (1 Form A)	Gull Wing	200 Ohms	3.75 VDC	0.2 ms	200 VDC 200 VAC	Non Latching	0.5 A
Coto Technology 9401-12-00	1 VDC	0.4 ms	Surface Mount	12 VDC	85 °C	-20 C	SPST-NO (1 Form A)	Gull Wing	825 Ohms	9 VDC	0.2 ms	200 VDC 200 VAC	Non Latching	0.5 A	14.5 mA
Coto Technology 9401-12-00-TR	1 VDC	0.4 ms	Surface Mount	12 VDC	85 °C	-20 C	SPST-NO (1 Form A)	Gull Wing	825 Ohms	9 VDC	0.2 ms	200 VDC 200 VAC	Non Latching	0.5 A	14.5 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY REED SPST 500MA 5V
