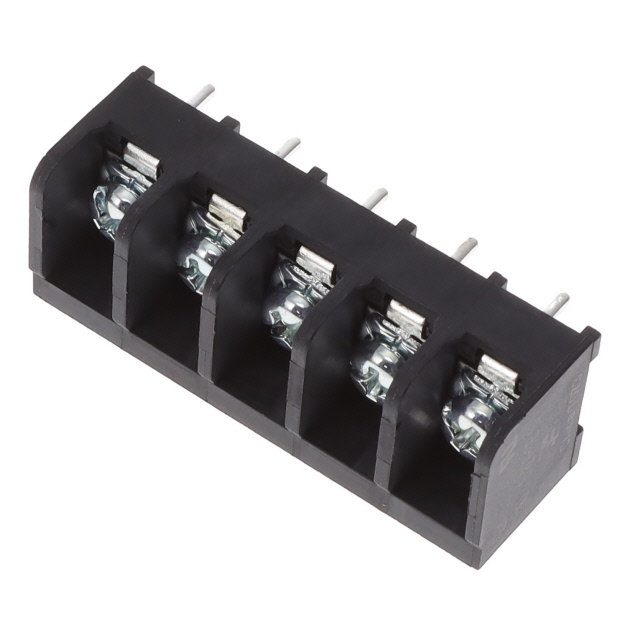

6DBL-05-006

Active

TE Connectivity Raychem Cable Protection

6DBL-05-006=6DBL ASSEMBLY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +2

6DBL-05-006

Active

TE Connectivity Raychem Cable Protection

6DBL-05-006=6DBL ASSEMBLY

Deep-Dive with AI

DocumentsDatasheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6DBL-05-006

Barrier Type	3 Wall (Tri)
Bottom Termination	PC Pin
Color	Black
Current Rating (Amps)	25 A
Material - Insulation	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Circuits	5
Number of Rows	1
Number of Wire Entries	5
Operating Temperature	105 C
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Zinc, Clear Chromate
Terminal Screw Material	Steel
Top Termination	Screws with Captive Plate
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

#6 Series Tri-Barrie Series

Barrier Terminal Blocks 15P PCB SIP TRI-BAR

...

Part	Number of Rows	Barrier Type	Pitch [x]	Pitch [x]	Current Rating (Amps)	Wire Gauge [Min]	Wire Gauge [Max]	Bottom Termination	Terminal Screw Finish	Number of Wire Entries	Top Termination	Operating Temperature	Material - Insulation	Voltage Rating	Terminal Block Type	Mounting Type	Terminal Screw Material	Number of Circuits	Color	Material Flammability Rating	Number of Circuits [custom]	Features	Number of Wire Entries [custom]
TE Connectivity Raychem Cable Protection 1546685-8	1	3 Wall (Tri)	9.53 mm	0.375 in	25 A	12 AWG	22 AWG	PC Pin	Clear Chromate Zinc	16	Screws with Captive Plate	105 C	Thermoplastic	300 VDC	Barrier Block	Through Hole	Steel	16	Black	UL94 V-0
TE Connectivity Raychem Cable Protection 1-1546685-1	1	3 Wall (Tri)	9.53 mm	0.375 in	25 A	12 AWG	22 AWG	PC Pin	Clear Chromate Zinc	19	Screws with Captive Plate	105 C	Thermoplastic	300 VDC	Barrier Block	Through Hole	Steel	19	Black	UL94 V-0
TE Connectivity Raychem Cable Protection 6PCV-08-008	1	3 Wall (Tri)	9.53 mm	0.375 in	25 A	12 AWG	22 AWG	PC Pin	Clear Chromate Zinc	8	Screws with Captive Plate	105 C	Thermoplastic	300 VDC	Barrier Block	Chassis Panel Through Hole	Steel		Black	UL94 V-0	8	Flange
TE Connectivity Raychem Cable Protection 6PCV-09-006	1	3 Wall (Tri)	9.53 mm	0.375 in	25 A	12 AWG	22 AWG	PC Pin	Clear Chromate Zinc	9	Screws	105 C	Thermoplastic	300 VDC	Barrier Block	Through Hole	Steel		Black	UL94 V-0
TE Connectivity Raychem Cable Protection 4-1546399-8	1	3 Wall (Tri)	9.53 mm	0.375 in	25 A	12 AWG	22 AWG	PC Pin	Clear Chromate Zinc		Screws with Captive Plate	105 C	Thermoplastic	300 VDC	Barrier Block	Chassis Panel Through Hole	Steel	24	Black	UL94 V-0		Flange
TE Connectivity Raychem Cable Protection 1546685-4	1	3 Wall (Tri)	9.53 mm	0.375 in	25 A	12 AWG	22 AWG	PC Pin	Clear Chromate Zinc	11	Screws with Captive Plate	105 C	Thermoplastic	300 VDC	Barrier Block	Through Hole	Steel	11	Black	UL94 V-0
TE Connectivity Raychem Cable Protection 6PCR-10-008	1	3 Wall (Tri)	9.53 mm	0.375 in	25 A	12 AWG	22 AWG	PC Pin	Clear Chromate Zinc	10	Screws with Captive Plate	105 C	Thermoplastic	300 VDC	Barrier Block	Chassis Panel Through Hole	Steel	10	Black	UL94 V-0		Flange
TE Connectivity Raychem Cable Protection 1546399-8	1	3 Wall (Tri)	9.53 mm	0.375 in	25 A	12 AWG	22 AWG	PC Pin	Clear Chromate Zinc		Screws with Captive Plate	105 C	Thermoplastic	300 VDC	Barrier Block	Through Hole	Steel	22	Black	UL94 V-0			22
TE Connectivity Raychem Cable Protection 6DBL-05-006	1	3 Wall (Tri)	9.53 mm	0.375 in	25 A	12 AWG	22 AWG	PC Pin	Clear Chromate Zinc	5	Screws with Captive Plate	105 C	Thermoplastic	300 VDC	Barrier Block	Through Hole	Steel	5	Black	UL94 V-0
TE Connectivity Raychem Cable Protection 6PCV-30-007	1	3 Wall (Tri)	9.53 mm	0.375 in	25 A	12 AWG	22 AWG	PC Pin	Clear Chromate Zinc	30	Screws	105 C	Thermoplastic	300 VDC	Barrier Block	Through Hole	Steel	30	Black	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4800	$ 1.77

Description

General part information

#6 Series Tri-Barrie Series

Barrier Terminal Blocks 15P PCB SIP TRI-BAR

Documents

Technical documentation and resources

6DBL-05-006

Deep-Dive with AI

6DBL-05-006

Deep-Dive with AI

Technical Specifications

#6 Series Tri-Barrie Series

Pricing

Description

#6 Series Tri-Barrie Series

Documents

Datasheet

Datasheet

UL_CERT_E54800_19730823_C1

ENG_CD_3-1437651-4_A4.pdf

#6 Series Tri-Barrie Series
