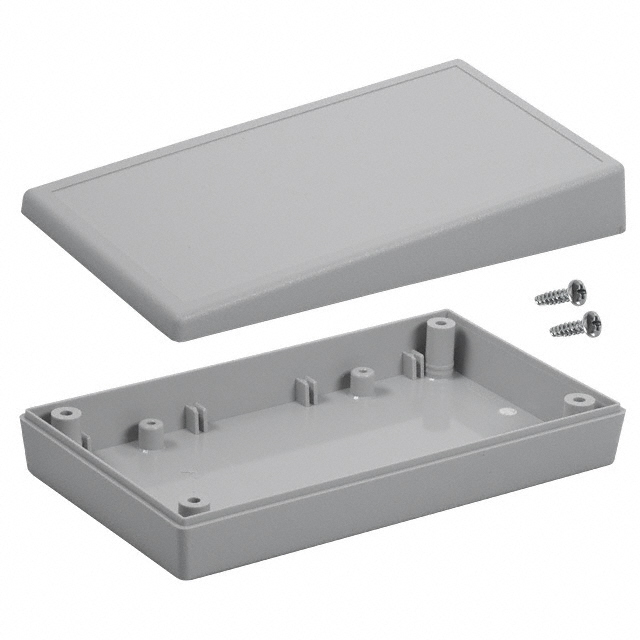

15S,GY

Active

Serpac

BOX ABS GRAY 5.63"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 5.63"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	15S,GY

Area (L x W)	18.3 in²
Area (L x W)	118 cm²
Color	Gray
Container Type	Box
Design	Split Sides and Slanted Top
Features	PCB Supports
Height [z]	1.51 in
Height [z]	38.35 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 4X, 14, 12
Size / Dimension [x]	5.63 in
Size / Dimension [x]	143 mm
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in

Part	Features	Ratings	Material Flammability Rating	Material	Height [z]	Height [z]	Design	Area (L x W)	Area (L x W)	Container Type	Thickness	Thickness	Color	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
Serpac 15S,GY	PCB Supports	12 14 IP40 NEMA 4X	UL94 HB	Plastic ABS	1.51 in	38.35 mm	Split Sides and Slanted Top	18.3 in²	118 cm²	Box	2.54 mm	0.1 in	Gray	5.63 in	143 mm	3.25 "	82.55 mm
Serpac 15S,BK	PCB Supports	12 14 IP40 NEMA 4X	UL94 HB	Plastic ABS	1.51 in	38.35 mm	Split Sides and Slanted Top	18.3 in²	118 cm²	Box	2.54 mm	0.1 in	Black	5.63 in	143 mm	3.25 "	82.55 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Gray Split Sides and Slanted Top 5.630" L x 3.250" W (143.00mm x 82.55mm) X 1.510" (38.35mm)
