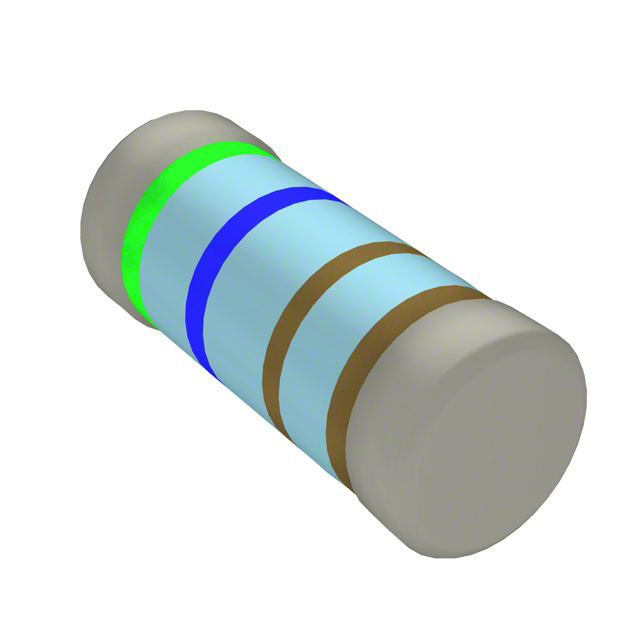

WRM0207C-560RFI
UnknownTT Electronics/Welwyn
RES SMD 560 OHM 1% 0.4W 0207
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WRM0207C-560RFI
UnknownTT Electronics/Welwyn
RES SMD 560 OHM 1% 0.4W 0207
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WRM0207C-560RFI |
|---|---|
| Composition | Metal Film |
| Features | Pulse Withstanding |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | MELF, 0207 |
| Power (Watts) | 0.4 W |
| Power (Watts) | 0.4 W |
| Resistance | 560 Ohms |
| Size / Dimension [diameter] | 0.094 " |
| Size / Dimension [diameter] | 2.4 mm |
| Size / Dimension [z] | 0.24 " |
| Size / Dimension [z] | 6.1 mm |
| Supplier Device Package | 0207 |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.30 | |
Description
General part information
WRM0207 Series
560 Ohms ±1% 0.4W, 2/5W Chip Resistor MELF, 0207 Pulse Withstanding Metal Film
