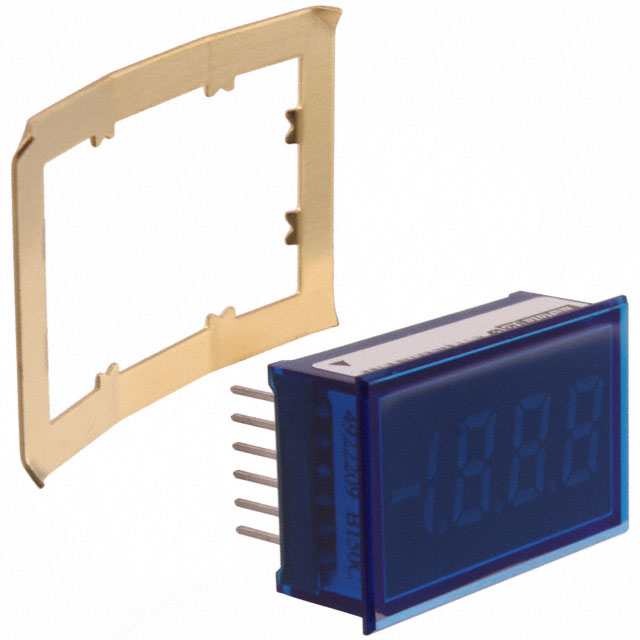

DMS-20PC-3-BL-C

Obsolete

Murata Power Solutions Inc.

VOLTMETER 200VDC LED PANEL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DMS-20PC-3-BL-C

Obsolete

Murata Power Solutions Inc.

VOLTMETER 200VDC LED PANEL MOUNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DMS-20PC-3-BL-C

Display Characters - Height	9.4 mm
Display Characters - Height	0.37 in
Measuring Range [Max]	200 V
Measuring Range [Min]	-200 V
Measuring Type	Voltage
Number of Characters Per Row	3.5
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Output Type	Reference
Panel Cutout Dimensions [x]	33.93 mm
Panel Cutout Dimensions [y]	21.29 mm
Termination Style	PC Pin
Type	Voltmeter
Voltage - Supply	5 V
Weight	11.34 g
Weight	0.025 lb

DMS-20PC Series

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage - Supply	Number of Characters Per Row	Type	Termination Style	Display Characters - Height	Display Characters - Height	Measuring Type	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Measuring Range [Min]	Measuring Range [Max]	Display Type	Output Type	Voltage - Supply	Features
Murata Power Solutions Inc. DMS-20PC-0-DCM-B-C	33.93 mm	21.29 mm	Loop Power	3.5	Voltmeter	Screw Terminal	9.4 mm	0.37 in	Voltage	28.12 g	0.062 lb	-25 °C	60 °C	4.5 VDC	19.99 VDC
Murata Power Solutions Inc. DMS-20PC-1-RH-C	33.93 mm	21.29 mm		3.5	Voltmeter	PC Pin	9.4 mm	0.37 in	Voltage	11.34 g	0.025 lb	0 °C	60 °C	-2 V	2 V	LED - Red Characters	Reference	5 V
Murata Power Solutions Inc. DMS-20PC-2-GS-C	33.93 mm	21.29 mm		3.5	Voltmeter	PC Pin	9.4 mm	0.37 in	Voltage	11.34 g	0.025 lb	0 °C	60 °C			LED - Green Characters	Reference	5 V
Murata Power Solutions Inc. DMS-20PC-1-LM-B-C	33.93 mm	21.29 mm	Loop Power	3	Voltmeter	Screw Terminal	9.4 mm	0.37 in	Voltage	28.12 g	0.062 lb	-25 °C	60 °C	85 VAC	264 VAC				Bezel Sold Separately
Murata Power Solutions Inc. DMS-20PC-0-BS-C	33.93 mm	21.29 mm		3.5	Voltmeter	PC Pin	9.4 mm	0.37 in	Voltage	11.34 g	0.025 lb	0 °C	60 °C	-200 mV	0.2 VDC		Reference	5 V
Murata Power Solutions Inc. DMS-20PC-3-BL-C	33.93 mm	21.29 mm		3.5	Voltmeter	PC Pin	9.4 mm	0.37 in	Voltage	11.34 g	0.025 lb	0 °C	60 °C	-200 V	200 V		Reference	5 V
Murata Power Solutions Inc. DMS-20PC-4/20S-C	33.93 mm	21.29 mm	Loop Power	3.5	Process Meter	Screw Terminal	9.4 mm	0.37 in	Process	16.78 g	0.037 lb	0 °C	60 °C			LED - Red Characters
Murata Power Solutions Inc. DMS-20PC-0-RL-C	33.93 mm	21.29 mm		3.5	Voltmeter	PC Pin	9.4 mm	0.37 in	Voltage	11.34 g	0.025 lb	0 °C	60 °C	-200 mV	0.2 VDC	LED - Red Characters	Reference	5 V
Murata Power Solutions Inc. DMS-20PC-2-BS-C	33.93 mm	21.29 mm		3.5	Voltmeter	PC Pin	9.4 mm	0.37 in	Voltage	11.34 g	0.025 lb	0 °C	60 °C				Reference	5 V
Murata Power Solutions Inc. DMS-20PC-2-RH-C	33.93 mm	21.29 mm		3.5	Voltmeter	PC Pin	9.4 mm	0.37 in	Voltage	10.89 g	0.024 lb	0 °C	60 °C			LED - Red Characters	Reference	5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 62.37
		5	$ 57.59

Description

General part information

DMS-20PC Series

Voltmeter LED - Blue Characters Display Panel Mount
