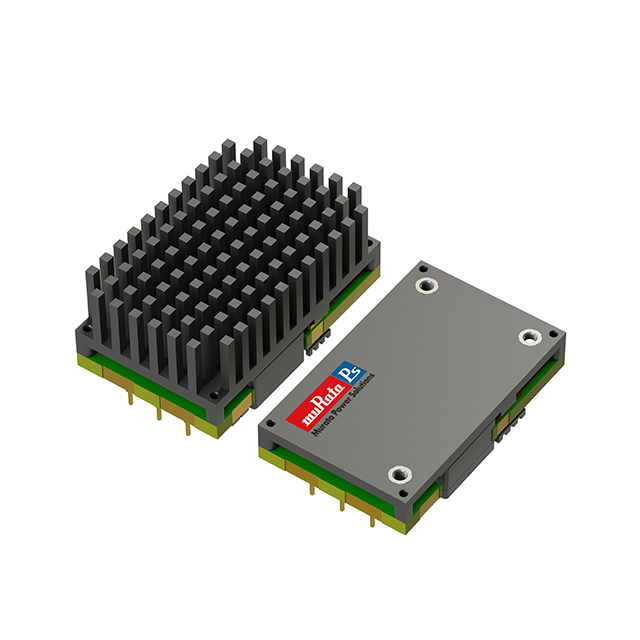

DRQ-12/42-D48PBA-C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 12V 500W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DRQ-12/42-D48PBA-C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 12V 500W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DRQ-12/42-D48PBA-C

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	42 A
Efficiency	95.5 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	16-DIP Module (15 Leads), 1/4 Brick
Power (Watts)	500 W
Size / Dimension [x]	2.3 in
Size / Dimension [x]	58.4 mm
Size / Dimension [y]	36.8 mm
Size / Dimension [y]	1.45 in
Size / Dimension [z]	13.2 mm
Size / Dimension [z]	0.52 "
Type	Intermediate Bus Converter, Digital
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	38 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	12 V

DRQ-12 Series

Part	Current - Output (Max) [Max]	Voltage - Output 1	Mounting Type	Voltage - Isolation	Efficiency	Control Features	Features	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Applications	Number of Outputs	Voltage - Input (Min) [Min]	Package / Case	Voltage - Input (Max) [Max]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]
Murata Power Solutions Inc. DRQ-12/42-D48PKL1-C	42 A	12 V	Through Hole	2250 VDC	95.5 %	Active High Enable	OCP OTP OVP Remote On/Off SCP UVLO	Intermediate Bus Converter	58.4 mm	2.3 in	27.9 mm	1.1 in	1.45 in	36.8 mm	ITE (Commercial)	1	38 V	1/4 Brick 5-DIP Module	75 V	500 W	85 °C	-40 °C
Murata Power Solutions Inc. DRQ-12/50-L48NKSA-C	50 A	12 V	Through Hole	2250 VDC	96 %	Active Low Enable	OCP OTP OVP Remote On/Off SCP UVLO	Intermediate Bus Converter Digital	58.4 mm	2.3 in	27.9 mm	1.1 in	1.45 in	36.8 mm	ITE (Commercial)	1	44 V	16-DIP Module (15 Leads) 1/4 Brick	60 V	600 W	85 °C	-40 °C
Murata Power Solutions Inc. DRQ-12/50-L48PB-C	50 A	12 V	Through Hole	2250 VDC	96 %	Active High Enable	OCP OTP OVP Remote On/Off SCP UVLO	Intermediate Bus Converter Digital	58.4 mm	2.3 in	13.2 mm	0.52 "	1.45 in	36.8 mm	ITE (Commercial)	1	44 V	1/4 Brick 5-DIP Module	60 V	600 W	85 °C	-40 °C
Murata Power Solutions Inc. DRQ-12/50-L48PKL2-C	50 A	12 V	Through Hole	2250 VDC	96 %	Active High Enable	OCP OTP OVP Remote On/Off SCP UVLO	Intermediate Bus Converter Digital	58.4 mm	2.3 in	27.9 mm	1.1 in	1.45 in	36.8 mm	ITE (Commercial)	1	44 V	1/4 Brick 5-DIP Module	60 V	600 W	85 °C	-40 °C
Murata Power Solutions Inc. DRQ-12/42-D48PBA-C	42 A	12 V	Through Hole	2250 VDC	95.5 %	Active High Enable	OCP OTP OVP Remote On/Off SCP UVLO	Intermediate Bus Converter Digital	58.4 mm	2.3 in	13.2 mm	0.52 "	1.45 in	36.8 mm	ITE (Commercial)	1	38 V	16-DIP Module (15 Leads) 1/4 Brick	75 V	500 W	85 °C	-40 °C
Murata Power Solutions Inc. DRQ-12/42-D48NK-C	42 A	12 V	Through Hole	2250 VDC	95.5 %	Active Low Enable	OCP OTP OVP Remote On/Off SCP UVLO	Intermediate Bus Converter	58.4 mm	2.3 in	13.2 mm	0.52 "	1.45 in	36.8 mm	ITE (Commercial)	1	38 V	1/4 Brick 5-DIP Module	75 V	500 W	85 °C	-40 °C
Murata Power Solutions Inc. DRQ-12/50-L48PBL1-C	50 A	12 V	Through Hole	2250 VDC	96 %	Active High Enable	OCP OTP OVP Remote On/Off SCP UVLO	Intermediate Bus Converter Digital	58.4 mm	2.3 in	13.2 mm	0.52 "	1.45 in	36.8 mm	ITE (Commercial)	1	44 V	1/4 Brick 5-DIP Module	60 V	600 W	85 °C	-40 °C
Murata Power Solutions Inc. DRQ-12/50-L48NB-C	50 A	12 V	Through Hole	2250 VDC	96 %	Active Low Enable	OCP OTP OVP Remote On/Off SCP UVLO	Intermediate Bus Converter Digital	58.4 mm	2.3 in	27.9 mm	1.1 in	1.45 in	36.8 mm	ITE (Commercial)	1	44 V	1/4 Brick 5-DIP Module	60 V	600 W	85 °C	-40 °C
Murata Power Solutions Inc. DRQ-12/42-D48NKA-C	42 A	12 V	Through Hole	2250 VDC	95.5 %	Active Low Enable	OCP OTP OVP Remote On/Off SCP UVLO	Intermediate Bus Converter Digital	58.4 mm	2.3 in	13.2 mm	0.52 "	1.45 in	36.8 mm	ITE (Commercial)	1	38 V	16-DIP Module (15 Leads) 1/4 Brick	75 V	500 W	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DRQ-12 Series

Intermediate Bus Converter, Digital DC DC Converter 1 Output 12V 42A 38V - 75V Input
